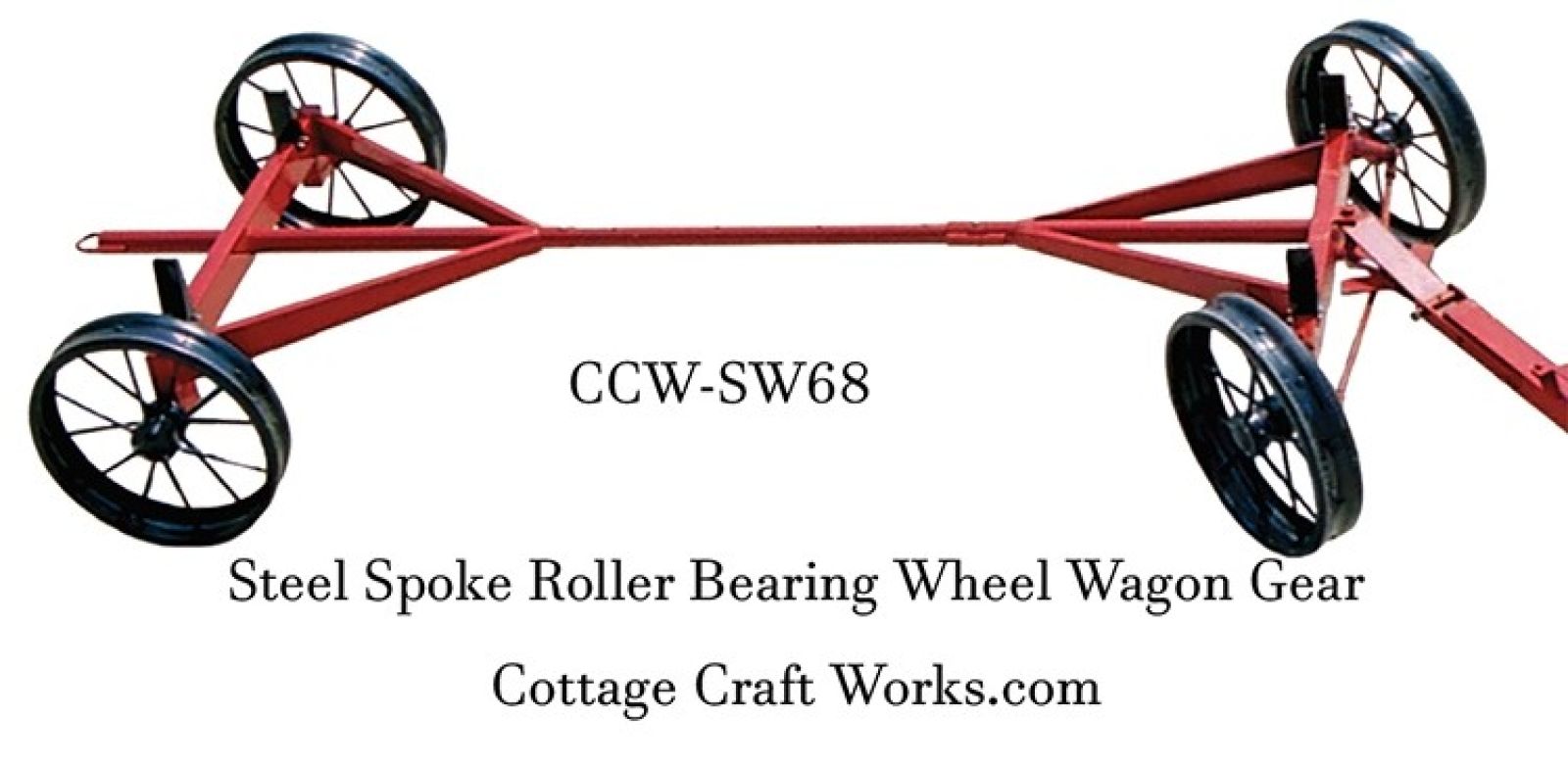

Farm Wagon Gear, Steel Spoke-Rim Wheels

$2,300.00

New authentic old-fashioned steel spoke wheel wagon gear to build vintage reproduction 12000 lb. capacity farm wagons, grain wagons, and other historical replica wagons used in horse-drawn and steam engine reenactments. Also, the perfect flat-free wagon gear to build working wagons used in areas with sharp metal fragments or thorns.

A perfect flat and dry wrought free wagon gear for building stationary replica Gypsy, tiny homes, and concession wagons.

Wagons are still made in the USA for working Amish farms using horse-drawn farm equipment. Available with wooden double team length wooden tongue or newer metal tractor pull tongue.

Read more below >

* Required Fields

Description

Also available with mechanical lever operated rear wheel disc brakes for building horse-drawn wagons.

Optional bolster spring sets are available in 2500 lb., 3500 lb., and 6000 lb. sizes. Not required, but good for operating on a hilly farm grounds where tipping may occur hauling heavy loads.

The CCW-SW68 utilizes slide on spindle roller bearing hubs using our 68-83 28” x 5-1/2” wide steel spoke wheels. We also have this same wagon with automotive-style 6-hole bolt-on hubs using our 28556 steel spoke wheels. That model is CCW-SWB0 and it will also accommodate 6-hole 4-5/8” bolt-on agriculture drop center rim air tires for use on pavements. Click Here for more information.

Available with either a wooden double team 12’ long x 4” wide metal tongue equipped with hammer strap and pole cap, or a newer 68” long metal tractor pull tongue equipped with a standard drop pin drawbar hitch.

Wagon Specifications:

Wheels- 28” x 5-1/2” wide 10-gauge metal rim steel spoke wheels equipped with standard automotive tapered roller bearings riding on a 1-3/4” high carbon steel spindles. Wagons will trail straight at tractor speeds.

Standard pressed in bearing seal and welded on dirt shields protect bearings from dust and mud

Capacity- 12000 lb. (Six Tons)

Steering- Automotive Tie Rod Style. Very short turn radius.

Axle- 2-1/2” x 5” rectangular 3/16” wall tubing

Reach- 2” and 2-1/2” pipe. Telescoping reach allows the wagon length to be varied from 90” to 138” to the center of the standards and axles. Overall actual wagon length is then determined by the length of the beams and decking added.

Track- 60”

Height- 22” top of the axle and 17” clearance under the axle

A Rear hoop hitch to connect wagons in tandem with a clevis

Adjustable 35”-41” beam width bolster standards

Priced as CCW-SW68-ST standard wagon gear with steel tractor tongue. Select different models using the drop-down box to see the incremental price increases.

Available models:

CCW-SW68 Standard wagon gear complete with tractor tongue

CCW-SW68-ST Standard wagon gear complete with a horse-drawn steel tongue

Wagons are priced F.O.B. Northern Indiana and will need to be truck freighted. We can arrange for pick-up or obtain a shipping quote. Wagon gear weight is 600 lbs. and has been shipped to Midwest locations for around $250-$300.
