Horse-Drawn Wagon Rear Jump Seat Hardware Kit

More Views

Horse-Drawn Wagon Rear Jump Seat Hardware Kit

$232.18

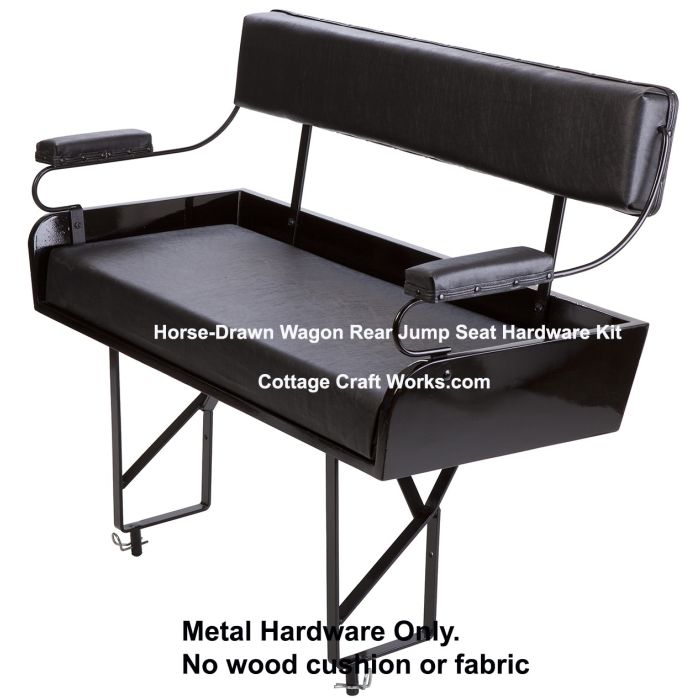

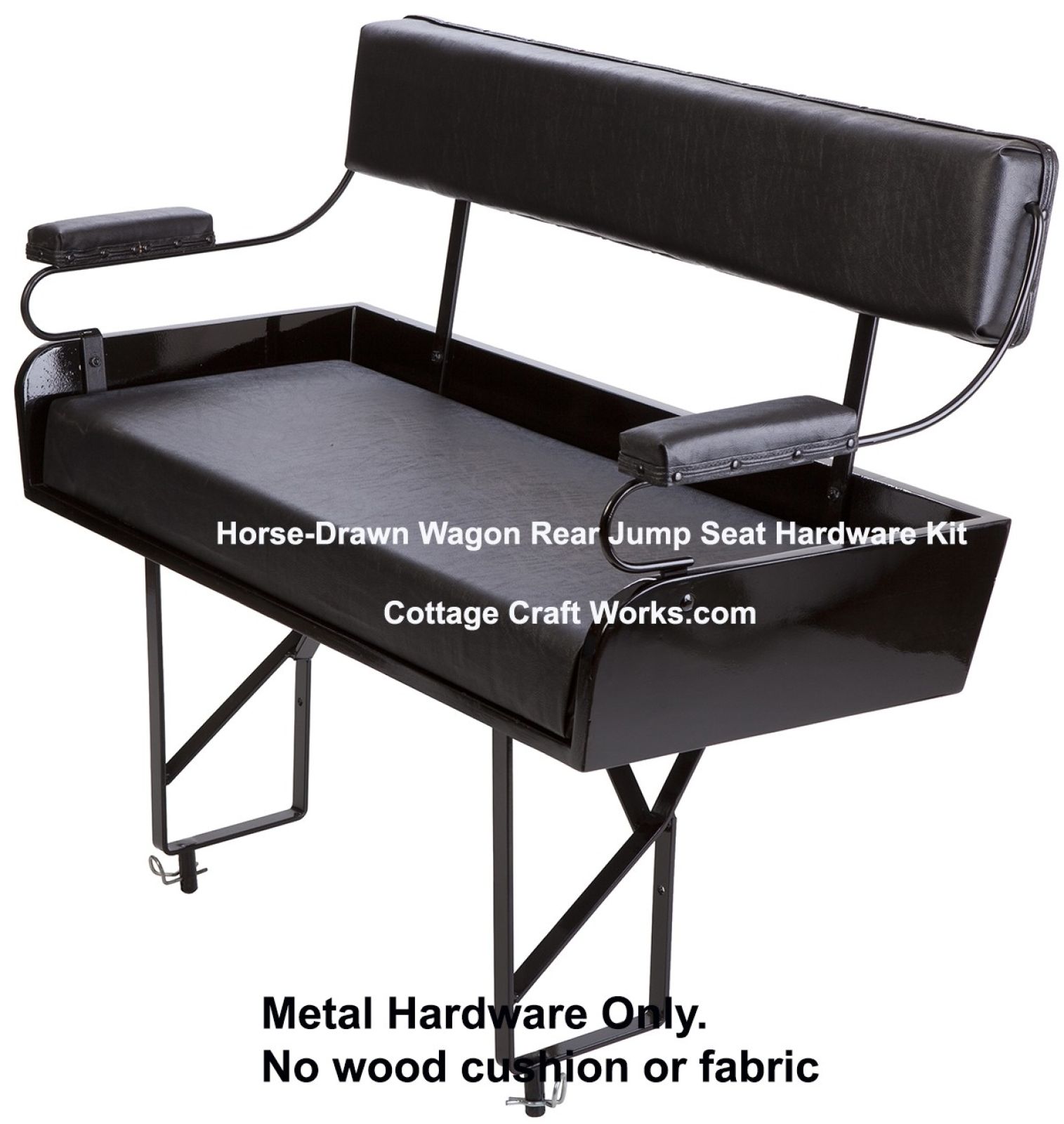

Build removable rear jump seats in your horse-drawn pickup, spring wagon, wagonette, using this Amish made hardware kit. Snap ring brackets quickly allow removal and installation of jump seats in wagon beds using floor flanges mounted into holes drilled in the wagon bed.

It does not include the seat wood, cushion, or fabric. Sorry, no plans are included. Build by the pictures.

Kit includes the two-seat legs, floor flanges, armrest irons, back-rest brackets, nuts, bolts, and screws.

Read more below >

Description

The floor flange is 2-1/4" at the top with a 1-1/8" x 1" stem to fit into a wagon floor thickness of 3/4" to 1". It will need to be ground down to fit flush on the bottom of a 3/4" floor to use the snap ring under the wagon bed.

Parts kit locations detailed on the numbered drawing.

#1- 2 x Seat Legs 186-SL

#2- Back Rest Brackets 187-BR

#3- 2 x Arm Rest 187-AR

#4- Carriage bolts & nuts for seat rest

#5- 5/16 x 1-1/2" flat head stove bolt & nuts

#8- #8 x 1/2 Screws

#9-#10 x 3/4" screws

Two seats are normally installed down the sides facing each other to make a wagonette. These seats can also be built longer to install across the bed. Not intended for automobile installation safety requirements.

See the example picture of building the wagon seat base. The side boards and back were set at a 42-1/2 degree angle. This picture was taken from one of our other wagon seat kits and is only provided as an example of how to build the seat base for the jump seat.

Metal Hardware is a USA Amish Made Product.
