Maytag Wringer Head-Frame Parts

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

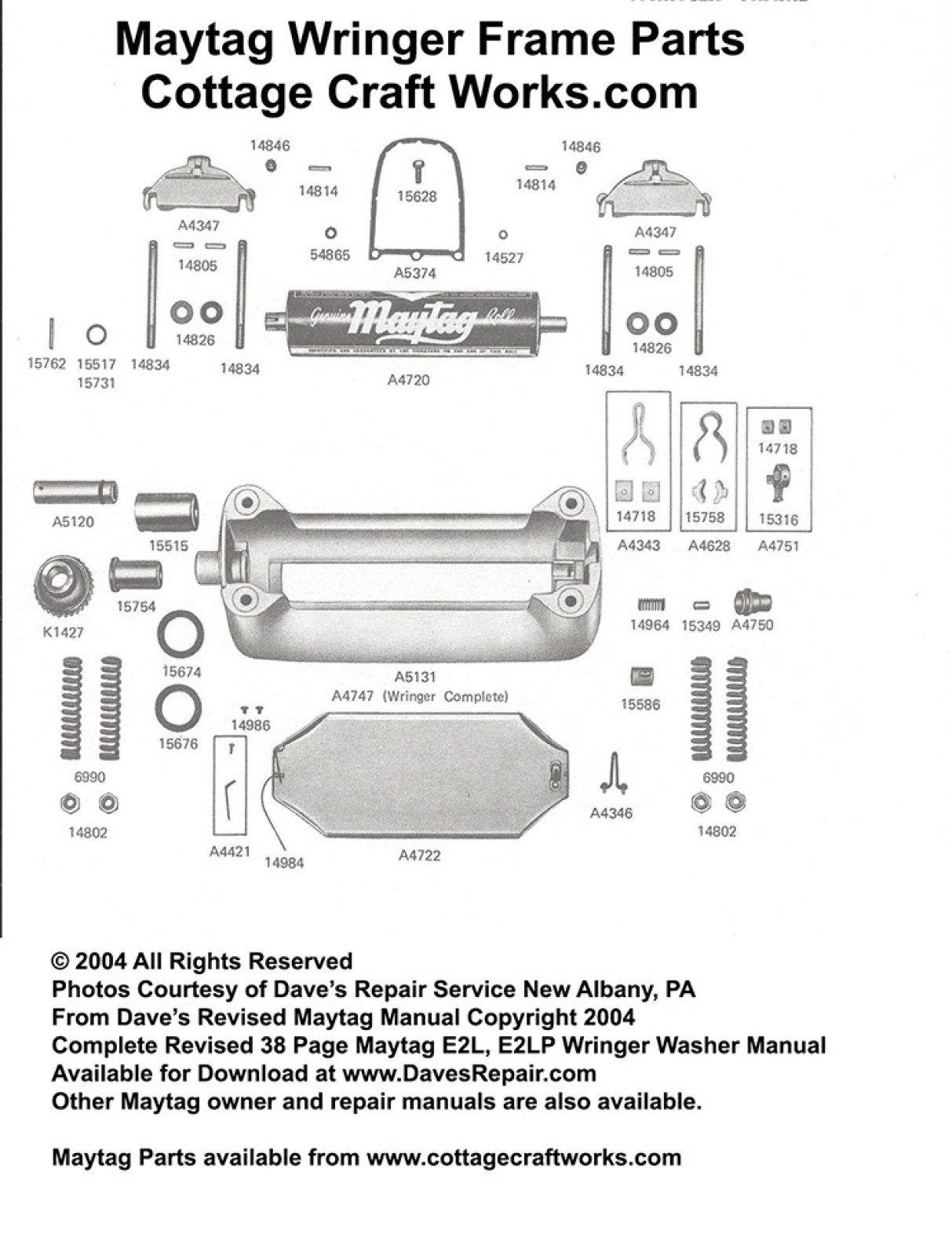

Available Parts:

6990 Tension Spring

14802 Stainless Nut for Tension Bolt (Not Pictured)

14803 Solid Pin for Collar 15367 (Not Pictured)

14814 Tension Cap Pin

14812 Pins for Cam Shaft

14826 Stainless Washer for Tension Bolt 14834 (Not Pictured)

14834 Tension Bolt (Not Pictured)

14846 Stainless Roller for Tension Cap Regular or Oversized

14964 Spring for the outer bearing (Not Pictured)

14984 Pin for Drain Pan, Long or Short (Not Pictured)

15266 Steel Ball for Wringer Handle (Not Pictured)

15267 Spring for Wringer Handle (Not Pictured)

15349 Pin for the outer bearing pin (Not Pictured)

15271 Wringer Head Retainer (Not Pictured)

15274 Wringer Head Spring (Not Pictured)

15366 Sleeve for Wringer Head

15367 Collar for Wringer Head

15360 Wringer Head Gear

15364 Lower Clutch Spring Right

15365 Upper Clutch Spring Left

15368 Drive Key

15515 Shoulder Bearing without Flange

15586 Nylon Bearing (Not Pictured)

15593 Ball Insert for Wringer Handle (Not Pictured)

15731 Wringer Drive O-Ring A Old Style Round Tub, B New Style Square Tub (Not Pictured)

15754 Shoulder Bearing with Flange

15758 Cam Shoe or see A4628 for complete Pan Trip with shoes

15762-A Crown Gear Coil Pin (Not Pictured)

A4301 Index Shaft (Not Pictured)

A4332 Index Slide

A4346 Stainless Wringer Pan Trip Lever

A4347 Tension Cap with or without bolts

A5374 Wringer Gasket Set

A4628 Pan Trip with 15758 Shoes

A4750 Outer Bearing (Not Pictured)

A4812 Wringer Stem (Not Pictured)

A4856 Drive Shaft-Wringer Head Gears (Not Pictured)

A5120 Drive Shaft

A5669 Foot Pedal Safety Actuator. *See note below

A4715 Operating Handle

A4722 Wringer Drain Pan for Square Tub Models

A4724 Wringer Drain Pan for Round Tub Models

A5284 Index Plate (Not Pictured) See Wringer Post Diagram

A5374 Gasket Set For Wringer Head

BWS05 Index Plate Repair Ring (Repairs a worn index plate mounting on old-style wringer post)

K1426 Yoke

K1427 Crown Gear

15674 .010 Shim for Crown Gear

15676 .028 Shim for Crown Gear

SM1003 L-Shaped Outer Water Tray Hanger Repair Part (Use when mounting holes have become worn)

SM1004 Flat Shaped Inner Water Tray Hanger Repair Part (Use when mounting holes have become worn)

56078 Lubricant, use locally obtained EP #1 Tube Grease.

56016 Grease used on shafts, stems, wringer handle, and tension parts.

*For the A5669 air-powered foot wringer safety actuator, we have found this source that seems to work. Click Here. We are not connected with Presair and only provide the link as an option. We are not carrying it because, if the wringer actuator seal cannot retain air, it will not be effective.

The Maytag A5669 Air-Powered Foot Wringer Safety Actuator is a pneumatic safety device designed to help reduce the risk of accidental engagement of the wringer rolls. When the operator depresses the foot squeeze bulb, air pressure travels through the hose to the plastic actuator. The actuator then pushes against the clutch release mechanism, allowing the wringer rollers to engage only while sufficient air pressure is maintained.

Inside the actuator is a flexible rubber diaphragm (membrane) that seals the air chamber. Over time, age, heat, and ozone exposure can cause this membrane to become brittle, crack, or develop pinholes. When this occurs, air pressure leaks away, and the actuator can no longer engage the clutch—even if a new foot squeeze bulb is installed.

Testing the Actuator

The actuator can be tested using a blood pressure cuff squeeze bulb or a similar low-pressure hand pump connected to the actuator hose. Pump the actuator while checking for air leakage or loss of pressure.

Important: Never use compressed shop air or any high-pressure air source. Excessive pressure can permanently damage the rubber diaphragm.

Repair Options

The actuator housing can be carefully pried apart to inspect the diaphragm. If the rubber remains soft and flexible, very small punctures or tears may sometimes be repaired with a quality rubber-compatible adhesive.

Unfortunately, replacement rubber diaphragms are not currently available, making repair the only option for many original actuators.

Replacement Foot Squeeze Bulb

If the original foot squeeze bulb is cracked, hardened, or leaking, it can be replaced with a compatible foot-operated air bulb.

Bypassing the Safety Actuator

Some owners have installed a screw or other mechanical spacer where the air hose connects to the actuator, effectively keeping the clutch engaged full-time and eliminating the pneumatic safety function. This modification bypasses the original Maytag safety interlock.

Many earlier Maytag wringer washers were manufactured without this pneumatic safety system, and many owners are unaware that later machines incorporated this added safety feature. Likewise, some Amish rebuilders and collectors have chosen to bypass the actuator because replacement diaphragms have not been available and reproducing the assembly has not been a priority.

Safety & Legal Disclaimer

WARNING: The Maytag A5669 Air-Powered Foot Wringer Safety Actuator is a factory-installed safety device intended to reduce the risk of accidental engagement of the wringer rollers. Disabling, bypassing, modifying, or removing this safety system increases the risk of serious personal injury, including hand and finger entrapment.

Cottage Craft Works does not recommend, endorse, or instruct users to bypass or disable any original safety device. Any modification to the actuator or clutch mechanism is performed solely at the owner's discretion and risk. The owner assumes all responsibility for the safe operation, maintenance, and use of the machine after any modification.

Always disconnect electrical power before servicing the washer, inspect all safety components before operation, and use the wringer with appropriate caution. Cottage Craft Works assumes no liability for injury, damage, or loss resulting from the modification, bypass, misuse, or operation of vintage equipment with altered or disabled safety devices.

The Amish depended on these old wringer washers as most of the United States population did in the early 1900s until newer modern spin cycle machines were developed. As manufacturing and replacement parts advanced, the Amish began to have difficulty obtaining parts to maintain the wringer washers. So, they began manufacturing their own supply of replacement Maytag parts, as they still do today. Cottage Craft Works.com takes a step back in time to help people who are still using or restoring the vintage home and farm equipment acquire replacement parts.

The washer parts listed are the most sought-after Maytag parts. Our Amish shop can procure or make just about any part that was used on the round or square tub machines. Since the Amish convert most of the machines to gas, air, or DC-driven motors, they don’t manufacture new electric motors. They also don’t use the drain pump, allowing the washer to gravity drain instead. If you need an electric motor or water pump, we can find you a used take-off. Just email us for the availability of any parts that we don’t list.

International customers, please email us with the parts that you need, and we will calculate the shipping cost and send you a PayPal invoice in US Dollars. Duties and taxes will still be due to your country upon delivery.

Parts ship directly from an Amish-owned business without computers; please expect some orders to take up to two weeks to ship. Most parts are stocked, but some may need to be made.
