USA Amish reproduction Maytag Wringer Washers parts for E series square tub washing machines and earlier J and N round tub machines made from the 1940s up until 1983. Keeping Maytag Wringer Washers operational in the Amish communities.

Maytag parts include the replacement, legs, leg extensions, casters, tubs, tub rings, bolts, washers, lids, drain hose, drain pan, and shifter knob.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to the cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more about available parts and shipping below the drop-down boxes

Description

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

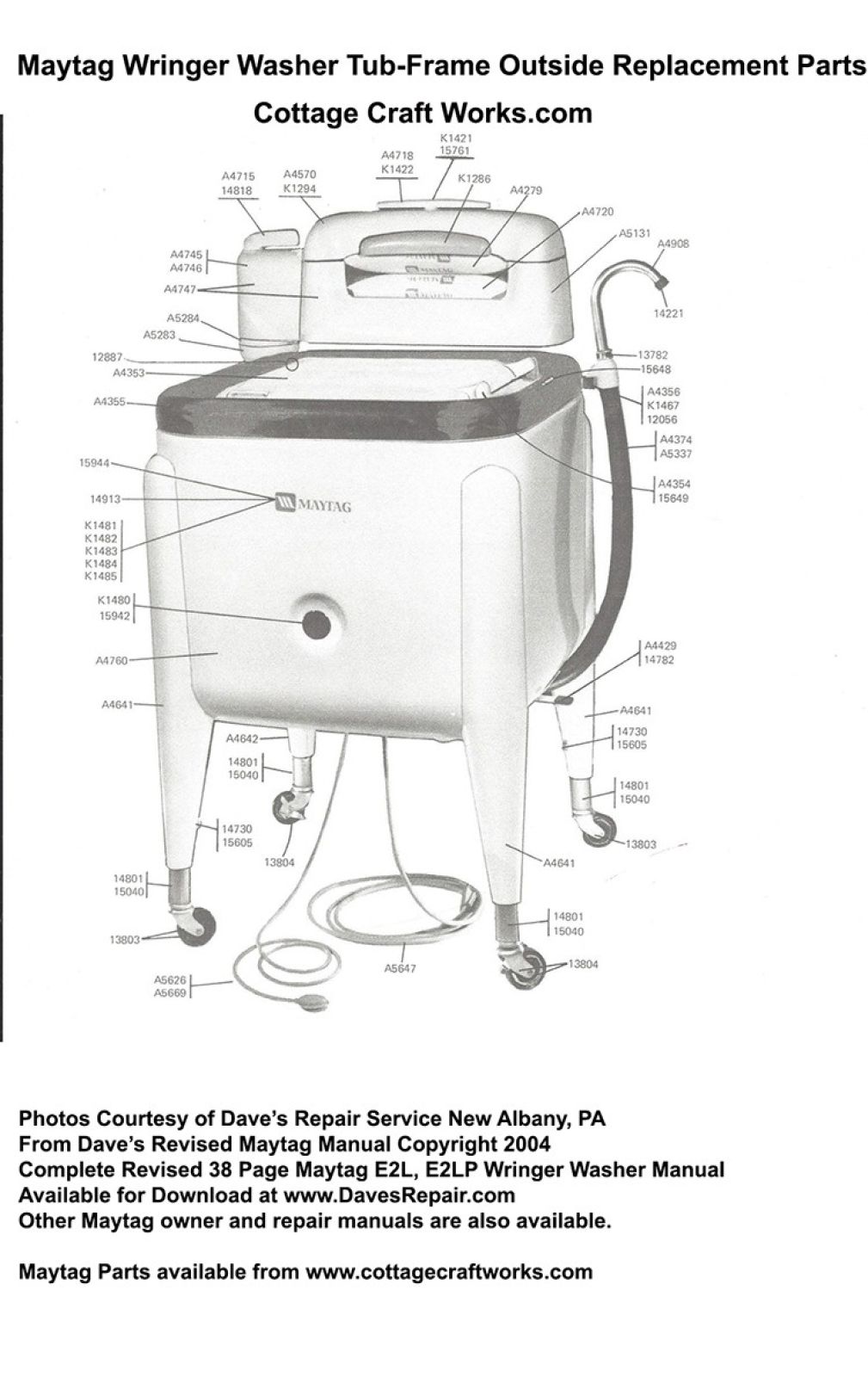

Available Maytag Parts:

A4353 Model E Square Tub Lid, this is the hinged lid, used refurbished painted, new lid band, (Not Pictured)

A4494 Model J Square Tub Lid, used refurbished powder-coated, new lid band, (Not Pictured)

A4550 Model N Round Tub Lid, used refurbished powder-coated, new lid band, (Not Pictured)

A4354 Model E Tub Lid Hinge with Bolt and Nut (used repainted)

A4355 Replacement Poly Tub Model E Square

A4374 Drain Hose, Gravity feed L no hose thread, A4374-A for pump model L with hose thread, A4374 L no hose thread. (See Picture of 3 Drain HoseHeads For Compare) (A4908 Drain Hose neck not available)

A4641 Model E Poly Replacement Leg (Machine uses three of these and one A462 with power shaft hole)

A4642 Model E Poly Replacement Leg with Wringer Power Shaft Hole. (Not Pictured)

A4722 Square Tub Drain Pan, A4742 Round Tub Drain Pan (Not Pictured)

K1480 Shifter Knob

12887 Inside Lid Bumper (Not Pictured)

13803 1-1/8" Stem Plain Caster Square Tub, 15059 Round Tub Model N Plain Caster

13804 1-1/8" Locking Caster Square Tub, 15060 Round Tub Model N Locking Caster

Note: Model N will need the caster sleeve removed and the new casters will bolt into the welded braces. Tap on the rounded end on the top of the sleeve and then pull it out with vice grips. The stem is longer on the new casters so the large nut is used as a spacer so that it will tighten down.

14730 Leg Extender Nut (Not Pictured)

14801 Leg Extension (Not Pictured) Refurbished (Raises washer about 3-1/2")

15605 Leg Extender Bolt (Not Pictured)

15022 Square Tub Lid Band, 15065 Round Tub Lid Band (Rubber edge bands that fit on the edge of the lid)

15023 Square Tub Skirt Band

15058 Round Tub Skirt Band

15265 Drain Strainer (Used in good condition, pictured as example only, actual stainer sent may look different)

15648 Long Bumper on the lip of tub for the lid to rest on

15755 Skirt Bushing fits on the shaft behind the agitator control knob.

BWS02 14-ga Poly Tub Ring

BWS03 11-ga Poly Tub Ring

5/16” x ¾” Stainless Tub Bolt .48 (Use BWS20 Tub Bolt Kit)*

5/16” x 1” Stainless Tub Bolt .63 (Use BWS20 Tub Bolt Kit)*

5/16” 1-1/4” Stainless Tub Bolt .63 (Use BWS20 Tub Bolt Kit)*

Large Rubber Bonded Stainless Tub Washer (Use BWS20 Tub Bolt Kit)*

* BWS20 Tub Bolt Replacement Kit- Stainless hex head bolt kit includes the 4 x 5/16" x 3/4" bolts to replace gulmite 15642 tub bolts, 2 x 5/16" x 1-1/4 bolts for replacements of the 14870 Center Plate Bolts, and 6 x large bonded washers.

Maytag Decal Logo 15945

Tip: Gulmite Bolt Removal, see the picture of the gulmite tub bolt compare of a standard 1/2" head and a #12 metric head. Most all the models used a standard 1/2" head that the Maytag gulmite wrench will fit. A few of the Maytag machines appear to have been equipped with a smaller metric head that looks the same but the gulmite wrench just turns on the head. The only solution is to use a small Dremel grinding wheel and grind a flat screwdriver slot to remove with a large wide screwdriver. May also be used to remove standard bolts if you don't want to invest in the wench.

BWS04 Stainless Pin Hole Tub Repair Ring (Use with gasket maker to bolt under the tub to fix common pin holes that develop under the agitator).

Tip-Leg Removal: The tub has to be removed to access all the leg bolts.

International customers, please email us with the parts that you need, and we will calculate the shipping cost and send you a PayPal invoice in US Dollars. Duties and taxes will still be due to your country upon delivery.

Parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks to ship. Most parts are stocked but some may need to be made.

Click Here to see all the available parts for Maytag Vintage Wringer Washing Machines.

Click Here to view our complete Maytag Wringer Washer service and repair manual.

For white paint used for touch-up or refurbishing the Amish shop uses Rust-Oleum Specialty 12 oz. Appliance Gloss White Epoxy Spray Paint #7881830
