New Idea 206 Spreader Axle Parts

More Views

New Idea 206 Spreader Axle Parts

$0.00

Spreader axle and wheel parts for ground driven New Idea No. 206 Manure Spreaders. Available parts include pawls, axle bushing, axle collar, wheel hub, feed cam, axle bearing housing, 32-tooth sprocket, sprocket wheel hub, and axle.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected.

Read more about available parts and shipping below in description >

Description

A $12 flat-rate shipping and handling base rate will process with each order regardless of the cost to ship the smallest part(s) sold in the US. Additional shipping cost will be required for larger or multiple parts that exceed the $12 shipping base rate.

If possible, please checkout using the PayPal option. We will be able to send you a PayPal invoice for any additional shipping. Otherwise, we are not able to upcharge shipping to a credit card order and will need to call you. We will not know the shipping cost until the Amish shop can verify the order and the cost to ship.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

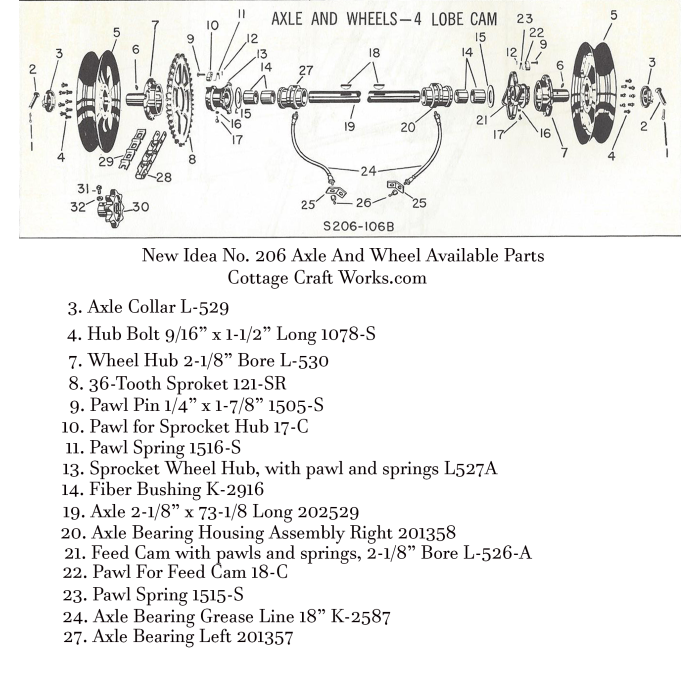

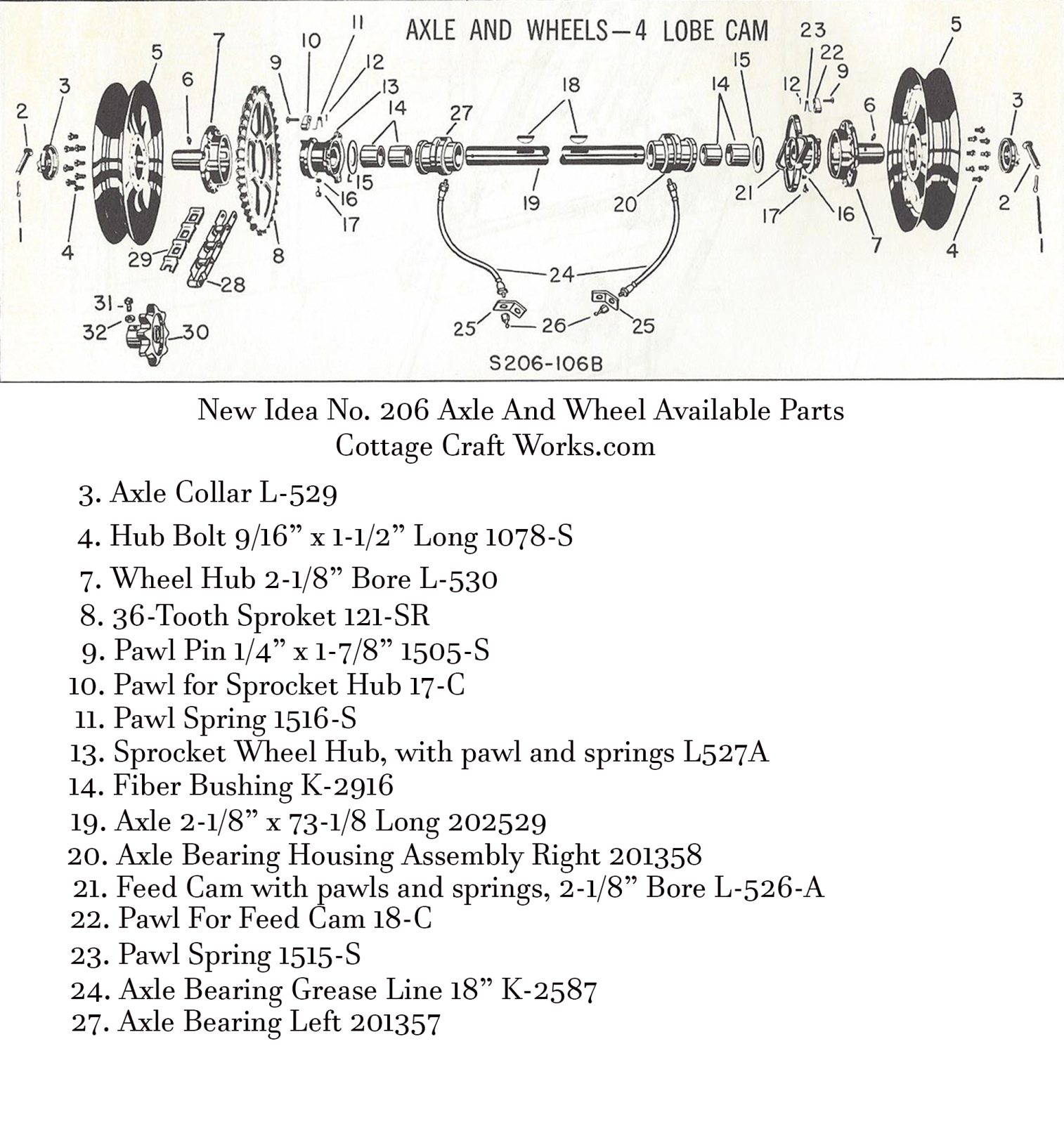

Available New Idea No. 206 spreader axle and wheel parts based on original part numbers

3. Axle collar L-529

4. Hub bolt 9/16” x 1-1/2” long 1078-S

7. Wheel hub 2-1/8” Bore L-530

8. 36-tooth sprocket 121-SR

9. Pawl Pin ¼” x 1-7/8” 1505-S

10. Pawl for sprocket hub 17-C

11. Pawl spring 1516-S

13. Sprocket wheel hub, with pawl and springs L527-A

14. Fiber bushing K-2916

19. Axle 2-1/8” x 73-1/8” long 202529

20. Axle bearing housing assembly right 201358

21. Feed cam with pawls and springs, 2-1/8” bore L-526-A

22. Pawl for feed cam 18-C

23. Pawl spring 1515-S

24. Axle bearing grease line 18” K-2587

27. Axle bearing left 201357

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard to find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18 and 206.

Click Here to see all of our 206 spreader parts.

Click Here to see all of our available parts for different New Idea spreader models.
