New Idea 206 Spreader Distributor Parts

More Views

New Idea 206 Spreader Distributor Parts

$0.00

New Idea 206 Spreader Distributor, (Distributer) parts for ground-driven New Idea No. 206 Manure Spreaders. Available parts include distributor bearing assembly, bushing, sprocket, bearing keeper plates, distributor shaft, collar, paddle castings, distributor paddles, and lower chain shield.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more about available parts and shipping below the drop-down boxes >

Description

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

New Idea used different spellings for distributor and distributer on different models. We used the model 206 spelling.

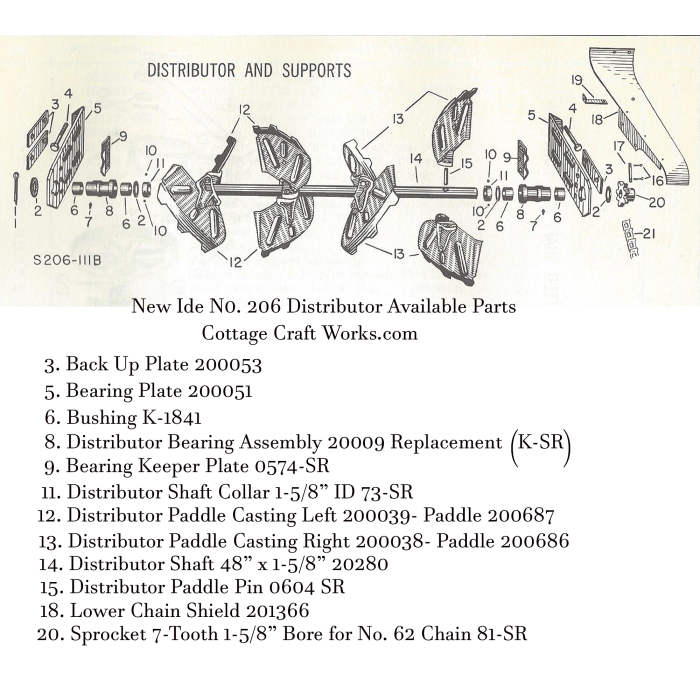

Available New Idea No. 206 spreader distributor parts based on original part numbers

3. Back up plate 200053

5. Bearing plate 200051

6. Bushing K-1841

8. Distributor bearing assembly 20009, replacement uses K-SR

9. Bearing keeper plate 0574-SR

11. Distributor shaft collar 1-5/8” 73-SR

12. Distributor paddle casting, left 200039, paddle 200687

13. Distributor paddle casting, right 200035, paddle 200686

14. Distributor shaft 48” x 1-5/8” 20280

15.Distributor paddle pin 0604-SR

18. Lower chain shield 201366

20. Sprocket 7-tooth 1-5/8” bore for No. 62 chain 81-SR

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard to find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18 and 206.

Click Here to see all of our 206 spreader parts.

Click Here to see all of our available parts for different New Idea spreader models.
