New Idea 206 Spreader Main Cylinder Parts


Main cylinder parts for ground driven New Idea No. 206 Manure Spreaders. Available parts include Cylinder tooth, sprockets, bearing assemblies, fiber bushing, cylinder head, main cylinder head, main cylinder shaft, and lower cylinder bars.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected.

Read more about available parts and shipping below in description >


A $12 flat-rate shipping and handling base rate will process with each order regardless of the cost to ship the smallest part(s) sold in the US. Additional shipping cost will be required for larger or multiple parts that exceed the $12 shipping base rate.

If possible, please checkout using the PayPal option. We will be able to send you a PayPal invoice for any additional shipping. Otherwise, we are not able to upcharge shipping to a credit card order and will need to call you. We will not know the shipping cost until the Amish shop can verify the order and the cost to ship.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

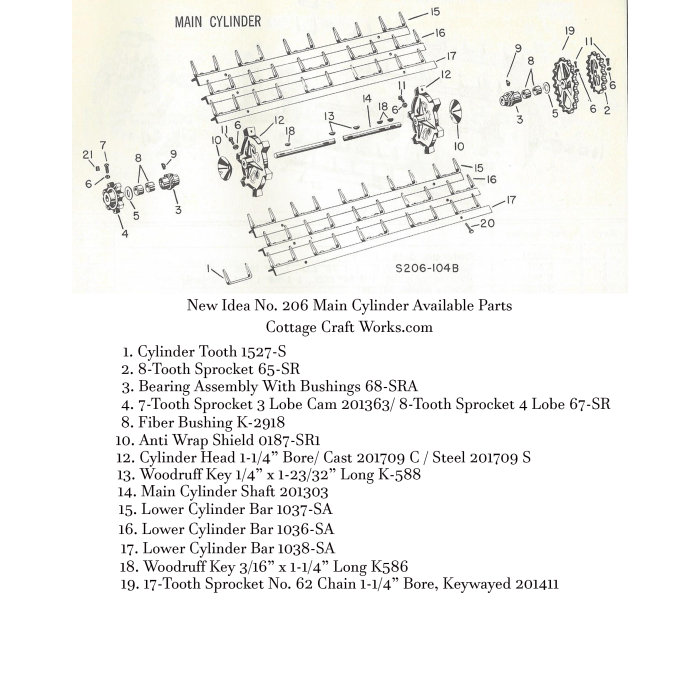

Available New Idea No. 206 spreader main cylinder parts based on original part numbers

1. Cylinder tooth 1527-S

2. 8-tooth sprocket 65-SR

3. Bearing assembly with bushings 68-SR

4. 7-tooth sprocket 3 lobe cam 201363 8-tooth sprocket 4 lobe 67-SR

8. Fiber bushing K-2918

10. Anti-wrap shield 0187-SR1

12. Cylinder head 1-1/4” bore, cast metal 201709-C or steel 201709-S

13. Woodruff key ¼” x 1-23/32” Long K-588

14. Main cylinder shaft 201303

15. Lower cylinder bar 1037-SA

16. Lower cylinder bar 1036-SA

17. Lower cylinder bar 1038-SA

18. Woodruff key 3/16” x 1-1/4” long K-586

19. 17-tooth sprocket, No. 62 chain, 1-1/4” bore, keyway 201411

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard to find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18 and 206.

Click Here to see all of our 206 spreader parts.

Click Here to see all of our available parts for different New Idea spreader models.
