New Idea 206 Spreader Upper Cylinder Parts


Upper cylinder parts for ground-driven New Idea No. 206 Manure Spreaders. Available parts include cylinder bearings, sprocket, bearing plates, upper cylinder head, cylinder shaft, cylinder bar tooth, upper cylinder chain shield, chain tightener bracket, and cylinder bar assemblies.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more about available parts and shipping below the drop-down boxes >


It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

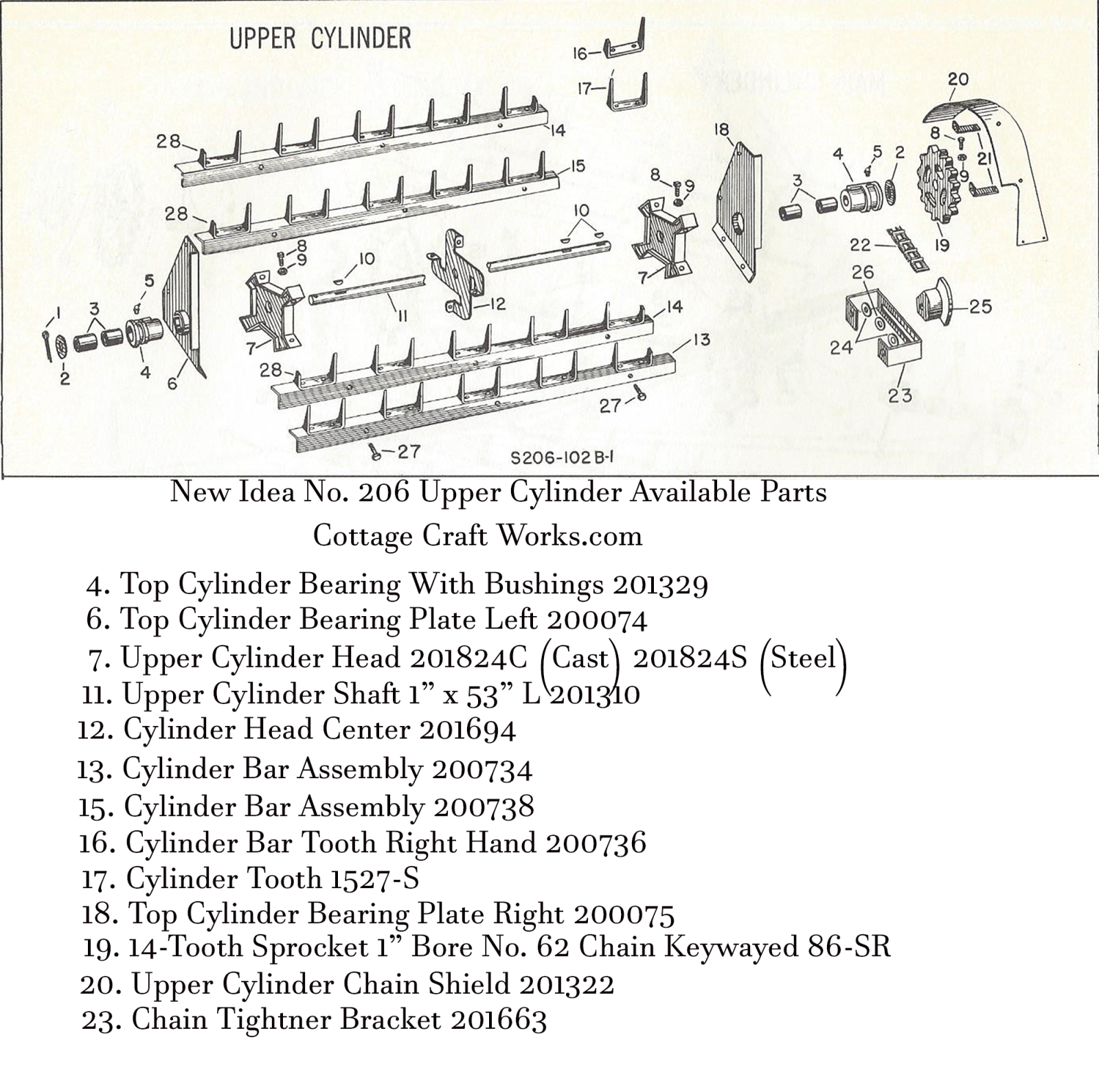

Available New Idea No. 206 spreader upper cylinder parts based on original part numbers

4. Top cylinder bearing with bushings 201329

6. Top cylinder bearing plate, left 200074

7. Upper cylinder head 201824C (cast metal) 201824S (steel)

11. Upper cylinder shaft 1” x 53” L-201310

12. Cylinder head center 201694

13. Cylinder bar assembly 200734

15. Cylinder bar assembly 200738

16. Cylinder bar tooth right hand 200736

17. Cylinder tooth 1527-S

18. Top cylinder bearing plate, right 200075

19. 14-tooth sprocket, 1” bore, No. 62 chain, keyway 86-SR

20. Upper cylinder chain shield 201322

23. Chain tightener bracket 201663

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard to find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18 and 206.

Click Here to see all of our 206 spreader parts.

Click Here to see all of our available parts for different New Idea spreader models.
