New Idea No. 12 Spreader Box Parts

More Views

New Idea No. 12 Spreader Box Parts

$0.00

Spreader box parts for vintage New Idea No. 12 Manure Spreaders. Available parts include bearing plates, braces, angles, upper cylinder shields, axle plates, and axle clamps.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more about available parts and shipping below the drop-down boxes >

Description

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

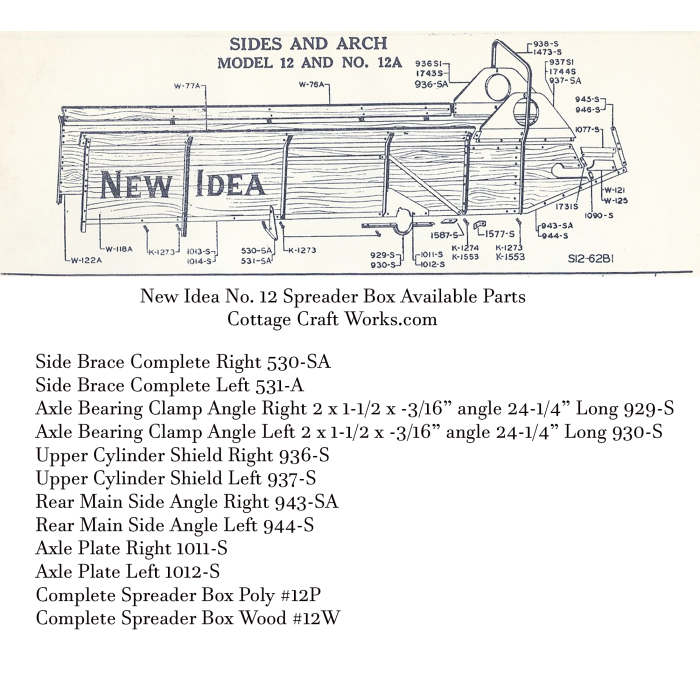

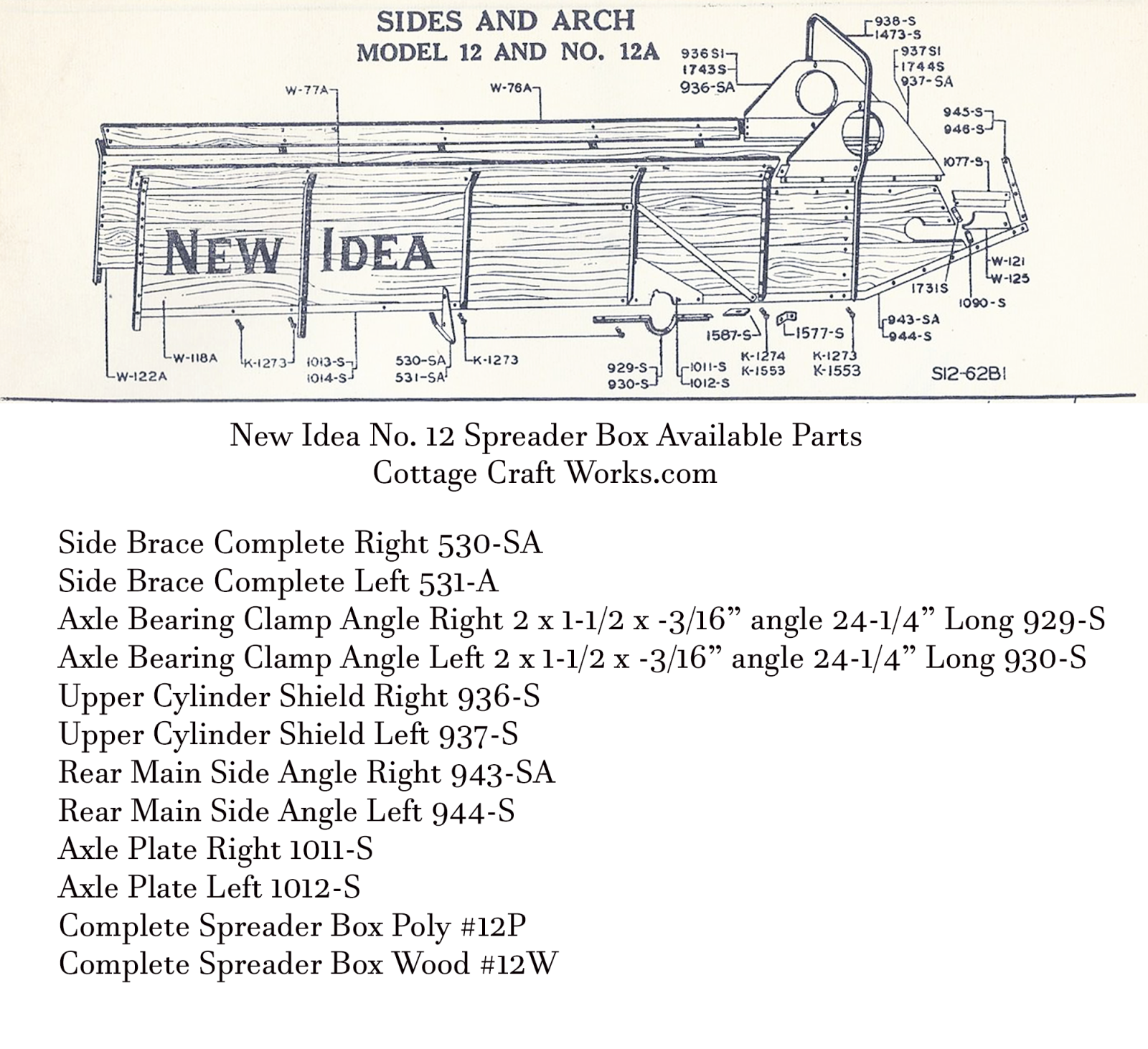

Available New Idea No.12 spreader box Parts based on original part numbers

Side Brace Complete Right 530-SA

Side Brace Complete Left 531-A

Axle Bearing Clamp Angle Right 2 x 1-1/2 x -3/16” angle 24-1/4” Long 929-S

Axle Bearing Clamp Angle Left 2 x 1-1/2 x -3/16” angle 24-1/4” Long 930-S

Upper Cylinder Shield Right 936-S

Upper Cylinder Shield Left 937-S

Rear Main Side Angle Right 943-SA

Rear Main Side Angle Left 944-S

Axle Plate Right 1011-S

Axle Plate Left 1012-S

Complete Poly Box Kit 12-P, Orange and Black tongue and groove lumber cut to length, with angles, and notches. No holes drilled, no hardware, and no bolts and nuts. Ships via truck freight.

Complete Wood Box Kit 12-W, Painted sides and treated shiplap lumber cut to length, with angles, and notches. No holes drilled, no hardware, and no bolts and nuts. Ships via truck freight.

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Click Here to see all the replacement parts for vintage New Idea No. 12 Manure Spreaders.
