New Idea No. 17 Spreader Axle & Wheel Parts

$0.00

Axle and wheel replacement parts for vintage New Idea No. 17 Manure Spreaders. Parts are primarily new replacement parts manufactured by an Amish owned company that has been supplying these parts to Amish communities long after the New Idea Company stopped making them.

High wear available replacement parts include axles, hubs, cams, sprockets, bearings, pawls, springs and pins.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more about available parts and shipping below the drop-down boxes >

Description

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

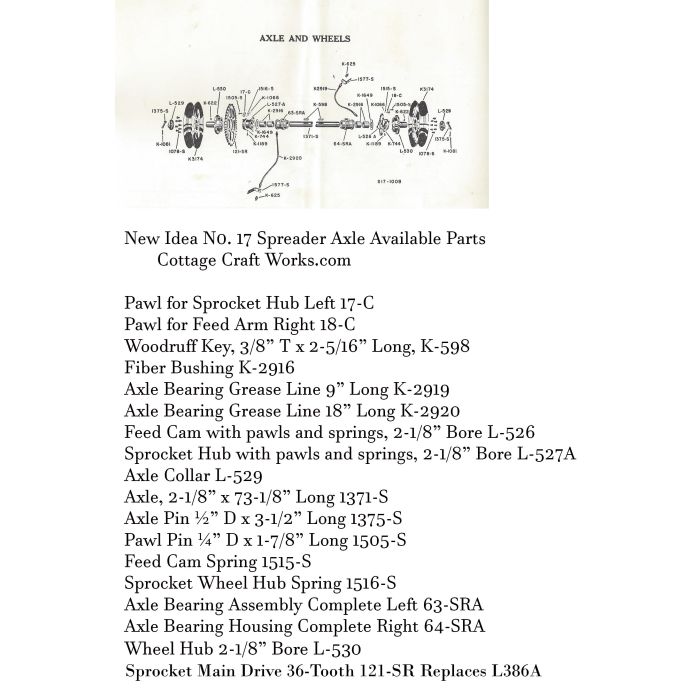

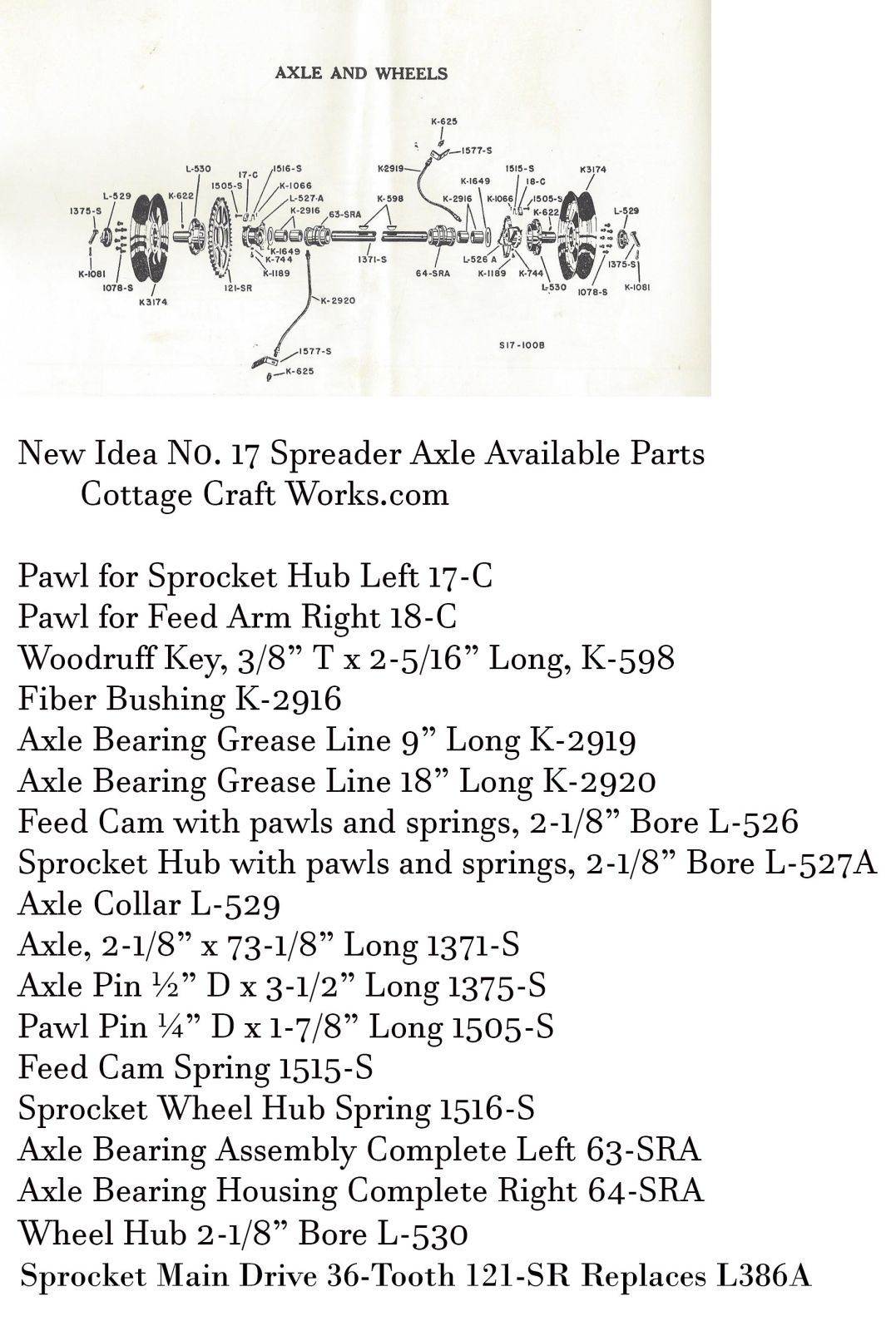

Available New Idea No.17 Spreader Axle and Wheel Parts based on original part numbers.

Pawl for Sprocket Hub Left 17-C

Pawl for Feed Arm Right 18-C

Woodruff Key, 3/8” T x 2-5/16” Long, K-598

Fiber Bushing K-2916

Axle Bearing Grease Line 9” Long K-2919

Axle Bearing Grease Line 18” Long K-2920

Feed Cam with pawls and springs, 2-1/8” Bore L-526

Sprocket Hub with pawls and springs, 2-1/8” Bore L-527A

Sprocket 36 tooth drive sprocket 121-SR Replacement for L-386-A

Axle Collar L-529

Axle, 2-1/8” x 73-1/8” Long 1371-S

Axle Pin ½” D x 3-1/2” Long 1375-S

Pawl Pin ¼” D x 1-7/8” Long 1505-S

Feed Cam Spring 1515-S

Sprocket Wheel Hub Spring 1516-S

Axle Bearing Assembly Complete Left 63-SRA

Axle Bearing Housing Complete Right 64-SRA

Wheel Hub, 2-1/8” Bore L-530

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard to find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18 and 206.

Click Here to see all of our New Idea No. 17 Manure Spreader Parts.
