New Idea No. 17 Spreader Feed Mechanism Parts

More Views

New Idea No. 17 Spreader Feed Mechanism Parts

$0.00

Feed Mechanism replacement parts for vintage New Idea No. 17 Manure Spreaders. Use to maintain or restore vintage New Idea Manure Spreaders for museums and working farms.

High wear available replacement parts include ratchet wheels, shields, feed arm bearings, feed arm rollers, springs, and pins.

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To select more than one part in the same drop-down box, select one to add to cart, and then select continue shopping to add more parts. To deselect click on the "Please Select" again.

Read more about available parts and shipping below the drop-down boxes >

Description

It would be data prohibitive to list each individual part with shipping. Therefore, shipping & handling is based on an average purchase of a few parts. We do charge a minimum $12 flat base rate on all items regardless of the size. This is to cover the cost to process, pack, drop-ship, and actual shipping charges.

Additional shipping may be required for larger orders. We will let you know if additional shipping will be needed. If you checkout using PayPal we can send you an invoice if needed. Otherwise, we will also need to have credit card information as our system does not store it with the order.

Since parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks for the order to reach the Amish shop, have shipping verified, additional shipping collected, before it will ship.

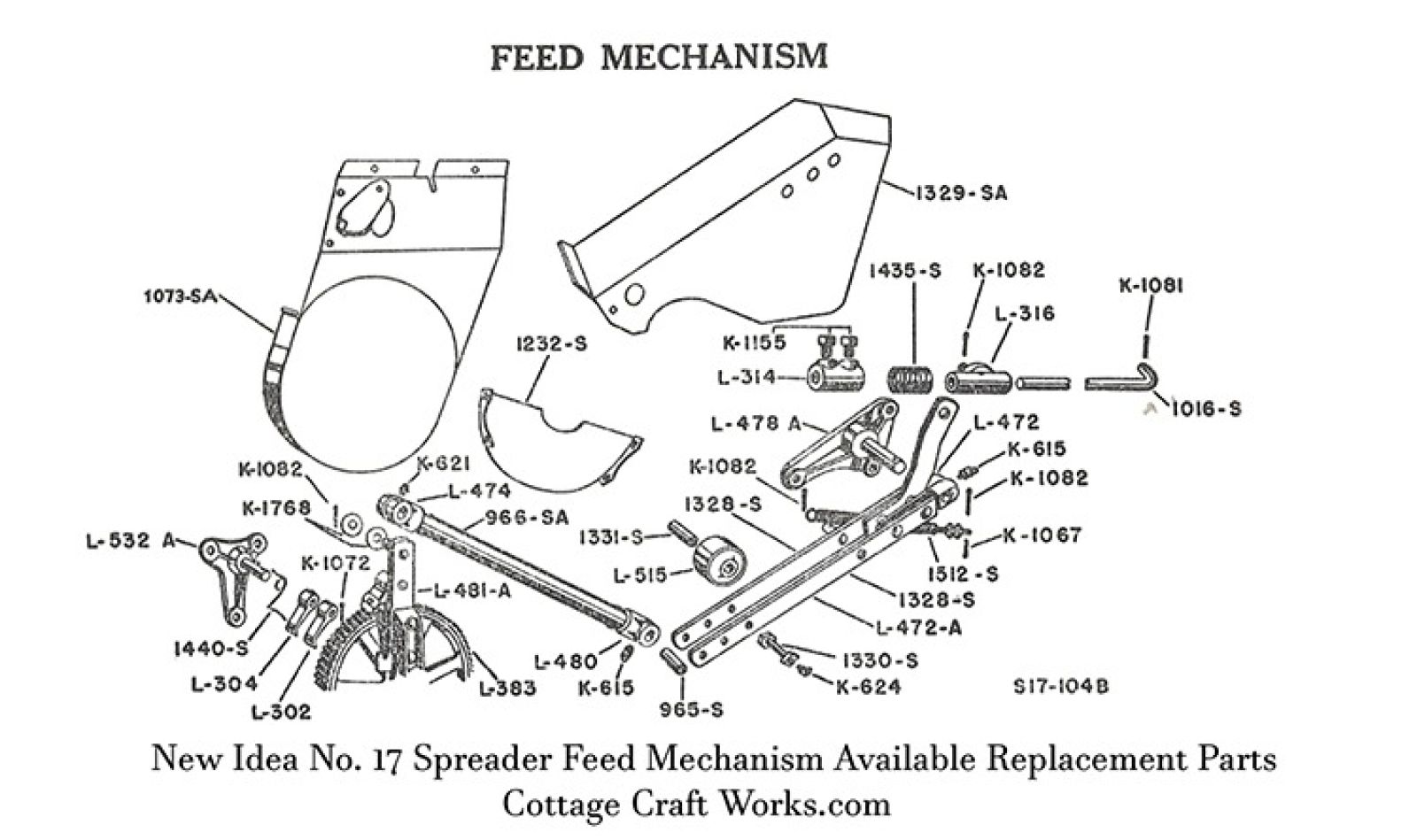

Available New Idea No.17 Spreader Feed Mechanism Parts based on original part numbers.

Ratchet Wheel 1-1/16” Bore L-383

Ratchet Wheel Shield 1073-SA

Inner Ratchet Shield 1232-SA

Feed Arm Bearing L-472

Auxiliary Feed Arm Post and Pin L-478-A

Feed Arm Complete with pawl and spring L-481-A

Feed Arm Roller L-515

Auxiliary Feed Arm Shield 1329-SA

Feed Roller Bushing 1” O.D. x 1-15/16” Long 1331-S

Compression Spring 1-5/16” O.D. x 2-3/4” Long 1435-S

Torsion Spring 1440-S

Extension Spring with bolt 1512-S

New Idea manure spreaders have been the standard manure spreader in Amish communities for generations and the Amish have continued to rebuild these old-time favorites. All parts are brand new USA Amish made since 1970.

Cottage Craft Works provides these hard to find replacement parts for those who want to restore and display or use these vintage farm machine implements of yesteryear. We carry many other replacement parts for the New Idea ground-driven spreaders for models, 8, 10, 10A, 12, 14, 17, 18 and 206.

Click Here to see all of our New Idea No. 17 Manure Spreader Parts.
