Please note: the single miniature pony shaft PS-350 will be made collapsible (bolt together at the doubletree) for UPS shipping. It is only available for the (AS) automobile steering wagon that uses tie rods connected to the wheels leading into a single center tongue connection. The PS-350 Shaft measures approximately 71" long, (50" to the doubletree) 22" wide at the doubletree, 17" wide at the shaft ends with the wagon connector tapering down to 2" wide on the back end.
Pony Shaft designated (AS) is for Automobile Steer and (FW) is for Fifth Wheel.
We can also do a larger breed shaft in a kit with the pipe cut ready to weld and paint. This shaft will measure approximately 91" X 24" requires the (AS) automobile steering option. Please email us for the shipping cost.
Shafts for fifth-wheel steering, (pictured) will need to be sent truck freight. Please email for the shipping cost.

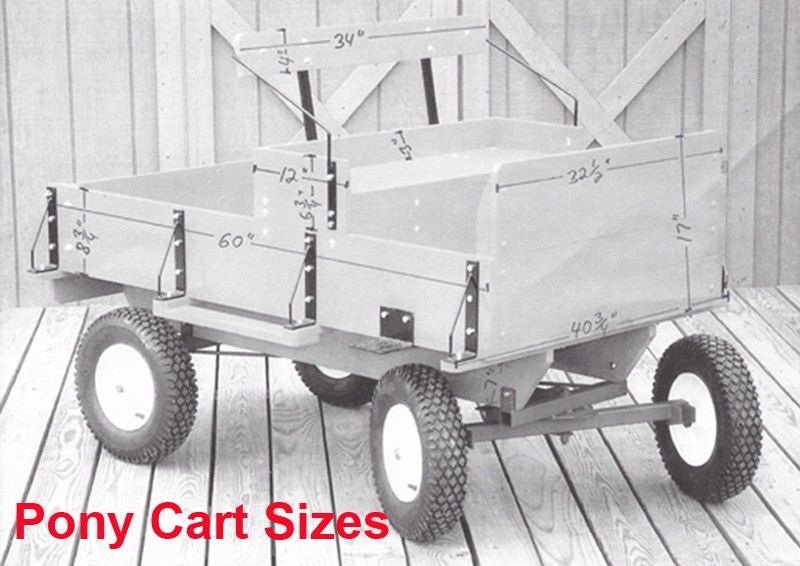

Sorry, we do not have detailed plans for this kit. You will need to build from the pictures. Click on black and white picture for some of the key measurements. It is made of 3/4" pine boards or plywood. You may choose the optional extender bar to extend the bed 12" longer than the 60" size shown in the black and white photos.

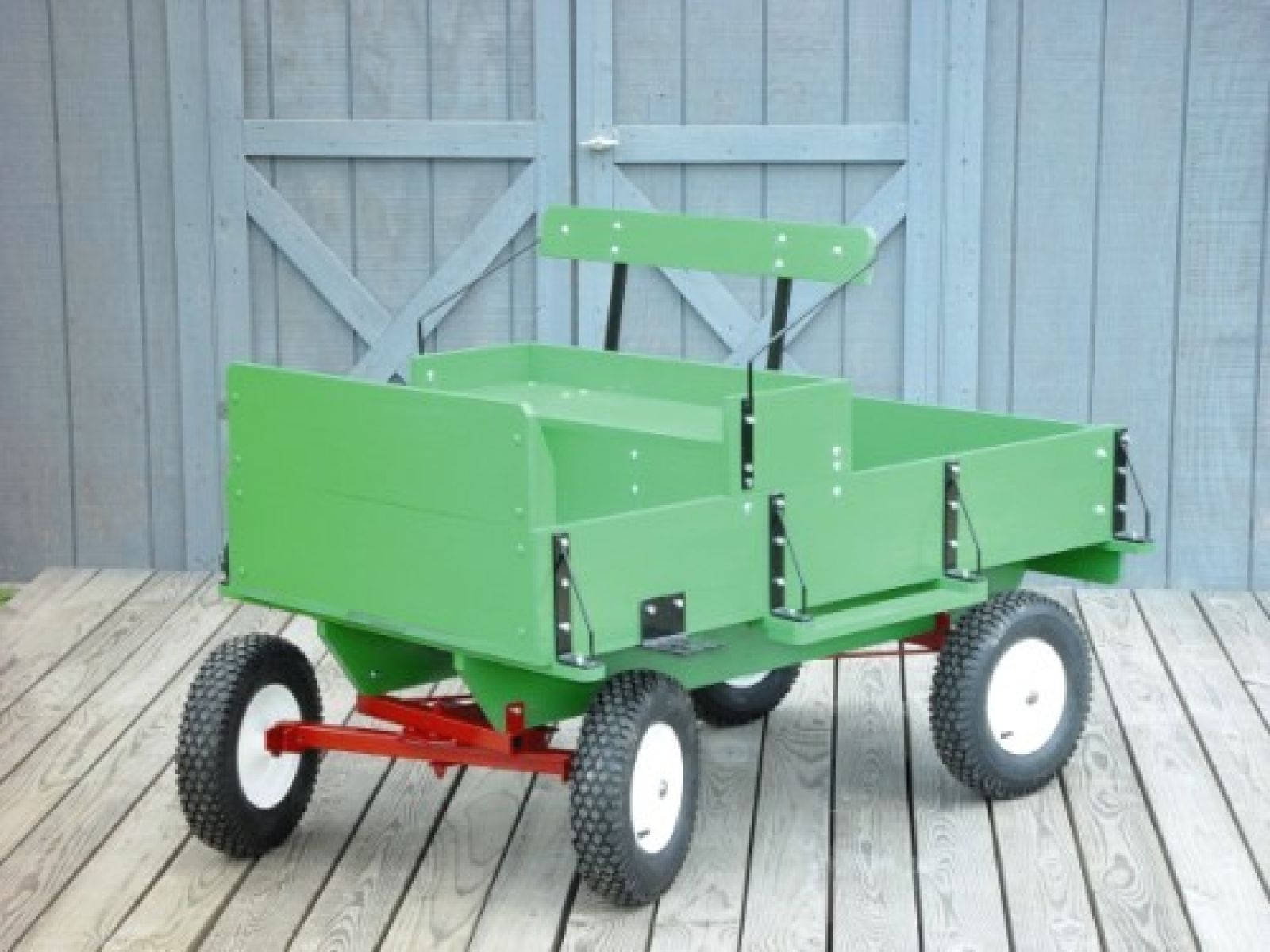

G1200FW Complete Wagon Running Gear Kit features large 16" x 400-8 Pneumatic Tires Load Capacity 1200 lbs. with fifth wheel steering (pictured) or automobile steering (fixed axle with tie rods to wheels) at no extra cost. Comes painted red.
The overall length is approximately 59" from the front to the back wheelbase. (The wheels extend past the actual frame front and back about 1/2 of the wheel size) The axel shafts are 3/4" diameter x 4" long.
Optional 12" extender bar available, extends the length of the wagon frame 12"
The wheel width measures 34" wide to the outside and 26" inside using the standard air rubber tires for narrow barn doors.
The welded brackets for the main beam supports are 16" wide. The frame is made with 1-1/2" x 1/8" square tubing. The two sections connect with 3/4" tubing. The load weight and pulling strength is then supported by the main beams.
The kit does not include seat cushion pictured. You may add one or two-seat cushions using the drop-down boxes. Cushions are only available in black.
Recommend purchasing Optional Band Brakes for pony carts.
Want to make it a two-seater? Add the extender bar and extra seat hardware.
