Silver Pro Reel Mower Parts

More Views

Silver Pro Reel Mower Parts

$0.00

Complete replacement parts for Silver Pro Reel Push Mower Models 18” 9201 (formerly #S1810) and 21” 9202 (formerly S2110)

Genuine factory Silver Pro Reel Mower parts direct from the manufacturer.

Parts referenced for Right or Left is the perspective of standing behind the mower reel from the push position and looking forward.

Read more about available parts below in the description >

Use drop-down boxes to select parts. If more than one part is needed in a category, add first part to cart and return to shopping to add more parts.

* Required Fields

Description

Priced a la carte, using the drop-down boxes. Select the parts needed and the prices will incrementally add for each part(s) selected. To deselect click on the "Please Select" again.  Parts are priced per each, the quantity used column is only for references.

Since we also sell the Silver Pro Reel Mowers, we support our customer with these replacement parts should they need them for aging models or mowers that have been damaged.

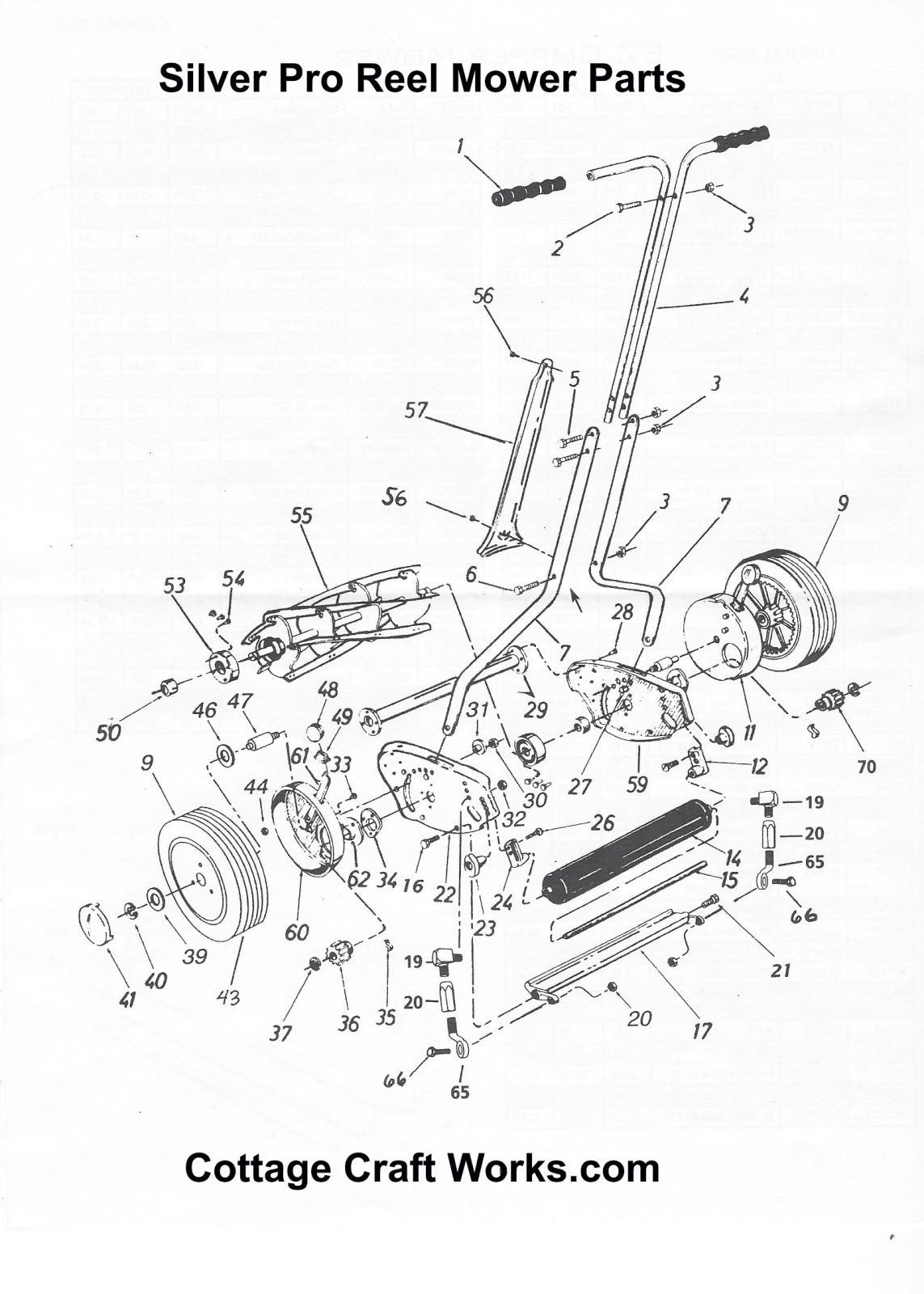

Silver Pro Reel Mower Parts for 18" #9201 and 21" 9202

REF #     Part #                Qty Used    Description

1              92001                    2            Handle Grip (Per Each)

2              92002                    1            Hex Bolt 5/16" x 18 x 2"

3              92003                    4            Lock Nut 5/16 x 18

4              92004                    1            Upper Handle 18" & 21"

5              92005                    2            Hex Bolt 5/16"-18 x 2-1/4"

7              92007                    2            Handle Brace (Either Side)

8              92008                    2            Wheel Bushing

9              92009                    2            Wheel & Tire Assembly

11            92011                     1            RH, Gear Assembly

12            92012                    1`           RH, Roller Bracket

14            92014                    1            Roller 9201418" for complete 18" roller, 9201421. One of three 21" rollers priced per each.

15            92015                    1            Roller Shaft 9201518 18" 5/16" Shaft, 9201521 21" 1/2" Shaft

16            92016                    1            Bed-Knife Bolt LH Thread USA

17            92017                    1            Bed-Knife

19            92019                    2            Trunnion

20            92020                    1            Long Adjustment Nut

21            92021                    1            RH, Bed-Knife Bolt USA

22            92022                    1            LH, Side Plate Assembly

23            92023                    1            Roller Adjustment Knob

24            92024                    1            LH, Roller Bracket

25            92025                    2            Axle Clip

26            92026                    1            Special Roller Knob Bolt

28            92028                    8            Pop Rivet (Spacer Tube)

29            92029                    1            Spacer Tube

30            92030                    2            5/16"-24 Axle Lock Nut

31            92031                    2            Spacer "T" Washer for Axle

32            92032                    2            Lock Nut for Trunnion

33            92033                    2            Hex Screw #10-32 x #/8"

34            92034                    2            Retainer

35            92035                    2            Pawl

36            92036                    1            L.H. Pinion Gear

37            92037                    2            Pinion Gear Retainer Ring

39            92039                    2            5/8" I.D. x 1-1/8" O.D. Flat Outside Wheel Washer

40            92040                    2            Wheel Retaining Wheel

41            92041                    2            Hub Cap

43            92043                    2            Tire Only

44            92044                    2            #10-32 Adjustment Lever Lock Nut

46            92046                    2           .078" I.D. x 1-1/8" O.D. Inside Wheel Flat Washer

47            92047                    2            Axle

48            92048                    1            Lever Adjustment Rubber Cap

49            92049                    2            Wheel Adjustment Dust Cover

50            92050                    2            Reel Bearing

53            92053                    2            Bearing Retainer

54            92054                    8            Rivet 3/16" x 13/32" Long

55            92055                    1            Reel Assembly

56            92056                    2            Handle Screw

57            92057                    1            Handle Name Panel

59            92059                    1            R.H. Side Plate Assembly

60            92060                    1            L.H. Gear Housing Assembly

61            92061                    1            Wheel Adjustment Lever

62            92062                    2            Pinion Housing

65            92065                    2            Eye Bolt

66            92066                    2            Bed-Knife Long Bolt

68            92068                    1            Complete Handle (No Grips)

A $12 flat-rate shipping and handling base rate will process with each order regardless of the cost to ship the smallest part(s) sold in the US. Parts have very little markup, especially on just a small item. The flat-rate helps defray our handling and processing is the same for a bolt or a larger order.

This should cover most mower parts that will fit in flat rate USPS boxes. Should you need larger parts or multiple parts, additional shipping cost may be required.

International customers, please email us with the parts that you need, and we will calculate the shipping cost and send you a PayPal invoice in US Dollars. Duties and taxes will still be due to your country upon delivery.

If you will be ordering multiple or large parts, please checkout using the PayPal option. We will be able to send you a PayPal invoice for any additional shipping if needed.

Otherwise, we are not able to upcharge shipping to a credit card order and will need to call you. We will not know the shipping cost until the Amish shop can verify the order and the cost to ship large parts or large orders.

Parts ship directly from an Amish owned business without computers, please expect some orders to take up to two weeks to ship. Most parts are stocked but some may need to be made.

Click Here to see the new Silver Pro and Clipper Reel Mowers.
