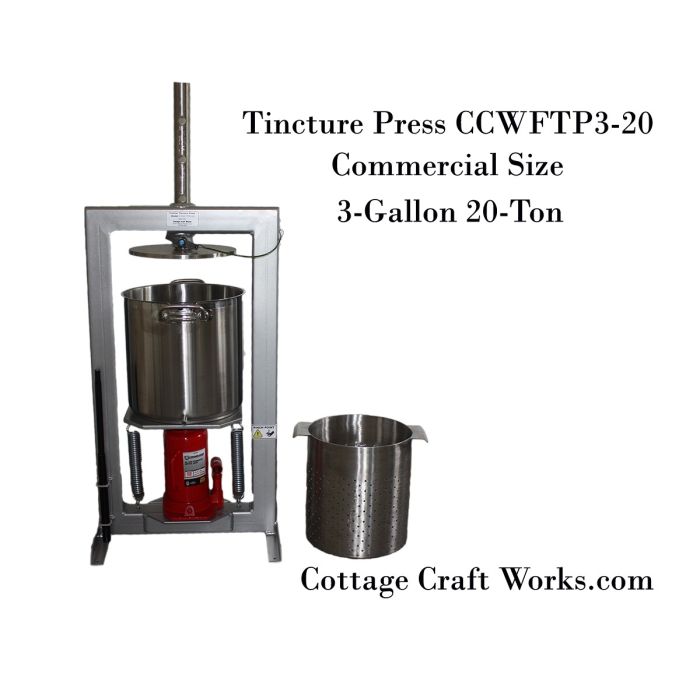

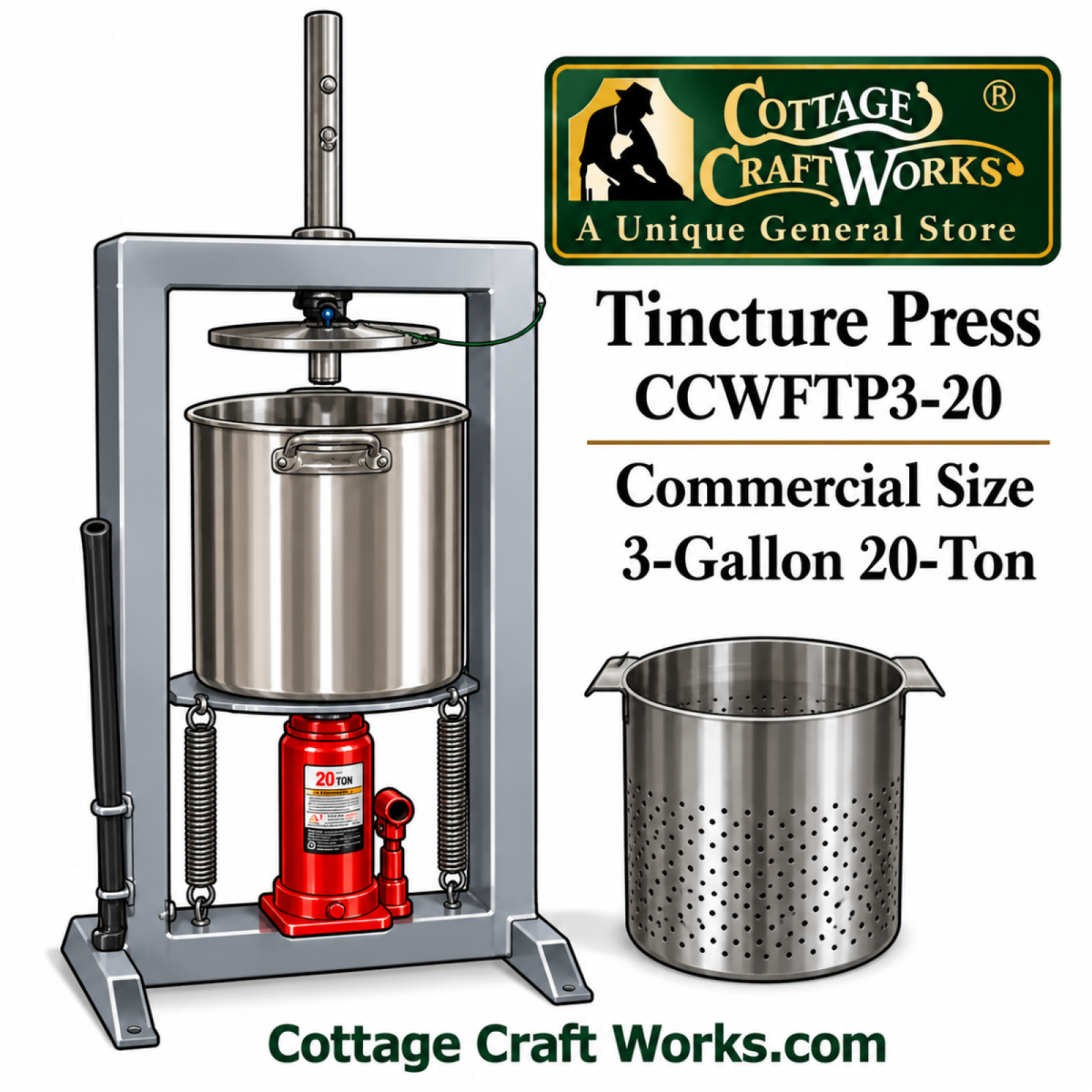

Tincture Press, 3-Gal, 20-Ton, Oil, Herb, Press

High-Yield Hydraulic Tincture & Herb Press for Maximum Extraction

The premium commercial-grade hydraulic tincture press delivers consistent 20-ton pressure to extract every last drop from your herbal, botanical, or plant extract batches. With a 3-gallon capacity, this press is among the largest available for tinctures, infused oils, juices, and herbal extracts, making it ideal for commercial, lab, and artisanal herbal operations.

Key Features & Benefits

• Powerful 20-Ton Hydraulic Jack: Provides consistent, high-pressure squeezing to maximize tincture and oil yield.

• Large 3-Gallon Capacity: Ideal for high-volume extraction runs without frequent reloading.

• Multi-Functional Use: Press tinctures, infused oils, juices, and other herbal extractions efficiently.

• Durable Construction: Built for rugged commercial use with quality materials for long service life.

• Labor-Saving Design: Dramatically reduces processing time versus manual straining and pressing.


Why This Press Outperforms Others

Unlike smaller batch presses or inexpensive consumer models, this hydraulic tincture press is engineered for production environments—from apothecaries to herb-processing labs. The high-force hydraulic jack and generous chamber size ensure that more liquid is extracted per batch, improving profits and cutting waste.

Who It’s Perfect For

• Herbalists and botanical extract producers

• Commercial tincture & oil makers

• Small laboratory extract facilities

• Artisanal beverage and juice makers

Trust & Quality

• Built for durability

• Ideal for consistent repeat use

• Backed by detailed product support

• More Information

Our CCW heavy-duty, USA-made, commercial, lab-quality hydraulic tincture presses are your top solution for extraction and pressing!

Considering time and herb cost, you can extract from 25%- 40% more valuable and potent tincture juices than hand-squeezing or screw style presses.

A bottom-mounted bottle jack applies upward pressure to the adjustable stainless-steel plunger. The CCW press configuration offers greater versatility than fixed-plunger models, allowing you to adjust and re-adjust the press for the marc being pressed.

The CCW Tincture presses are highly versatile for a range of food-processing applications. Extract alternative medicinal tinctures and oils from a variety of herbs, plants, fruits, and vegetables to produce herbal medicines, salves, wine, and fruit juices, using a versatile CCW bottle, a jack tincture, and a fruit and oil press. It also makes a great cheesemaking press. Made in the USA by the Amish.

A bottom-mounted bottle jack applies upward pressure against the adjustable stainless-steel plunger. The CCW press configuration offers greater versatility than fixed-plunger models, allowing you to adjust and re-adjust the press for the marc being pressed. At the top-hole setting, the plunger will zero out at the base of the basket. This press can also be used with a woodblock, as many tincture-processing videos show, but a woodblock is not required with the CCW presses.

Features:

• All 304 Stainless steel food contact surfaces
• Heavy-duty construction for home or commercial small-scale herb and oil extract labs
• Durable powder-coated steel frame (a durable baked-on finish popular for commercial equipment)
• Spring-loaded return
• Use freestanding or mount on a bench or stand using mounting holes

Benefits:

• Tremendous force over traditional screw presses and 6-ton presses to squeeze out every drop of medicinal goodness.
• Very convenient and easy to use
• Easy to clean, pressing bags with a close-tolerance plunger allows the pulp (marc) to be easily removed.
• Use for pressing juice from apples, berries, grapes, and vegetables; pressing cheese, etc.

Press Basket Options

We offer two types of inner press baskets. The standard-size tincture basket has 3/16” perforations that work on tinctures and hard fruits such as chopped apples. For those who will be doing only soft fruits or would like to have the option of doing both tincture and soft fruits, we also offer a soft fruit inner press basket with smaller-sized 5/64” perforations. Soft fruits such as oranges will press the same in the standard basket, but at that pressure, the press bags tend to push through the larger perforations, making them harder to pull out of the basket and easier to tear when removing them.

Using the drop-down boxes, select standard tincture, soft fruit, or both. Selecting either will not increase the price; selecting both will add the cost of the second basket to the overall price.

New to pressing juices and extracts? For best results, chop or grind hard fruits and vegetables to extract the maximum juice. For plant extracts, chop, cut, or mill the herbs and plants into small pieces, then use a menstruum (soaking agent) such as alcohol, glycerin, water, vinegar, wine, or a mixture thereof to “presoak” (also known as maceration) the herbs and plants. Place in airtight containers to produce tinctures over an extended period before they are ready to press. This process will ensure you receive all the benefits and medicinal goodness that they can provide. (Google Menstruum and making tinctures)

The benefits of Amish USA-made products: Beyond their reputation for quality, the Amish do not practice planned obsolescence and prioritize corporate profits. They make high-quality, functional products using the best non-toxic materials, anticipating that they will be used for generations by the Amish and other families.

The press is equipped with a highly rated Strongway brand bottle jack, built in an ISO-certified facility and tested for reliability and safety to meet ASME PALD 2009 standards. They are coated with lead-free paint. These jacks have proven superior to other bottle jacks. The bottom-mount configuration will never allow hydraulic fluid to leak into the tincture, unlike some other topside-mounted tincture press configurations on the market. This is a key factor in choosing a tincture press, as automobile-style bottle jacks were never designed or tested for use over food-grade processing.

Each press comes with two clear, NSF-approved, ½” I.D. PVC hoses for beverage and drinking water systems. For replacement tubing, see https://www.mcmaster.com/catalog/131/149/5231K371 1/2" x 5/8" x 1/16" 25 psi @ 72° F, FDA Compliant. These hoses can be equipped with locally sourced plumbing tube fittings and jar stoppers (which will need to be drilled for the fittings) to feed into a glass jug, creating a closed system. A jar with a tight-fitting lid may also be drilled to allow the PVC hose to fit snugly into the top. Replacement hoses are also available at local hardware stores. You may order more 12” x 16” pressing filter bags using the drop-down boxes. Bags open to about 7-1/2” diameter, and the 16” height fits perfectly into the press. You will likely be able to find pressing bags at a much lower cost than we can offer, as the Amish shop cannot obtain them any cheaper.

Pressing times vary based on the type of material or tincture being pressed. Some tinctures require significant time and care to produce, so pausing to allow the tincture to flow should be the focus rather than speed. As a rule of thumb, 10-15 minutes is an average time. To get every drop, you will want to repack and press some of the more expensive or most coveted tinctures again. When complete, your marc should be dry and firm like a formed puck.

Smaller sizes are also available. Click Here to view all our versatile tincture herb and fruit presses.  Please email us with your custom needs.

Click Here to purchase extra tincture pressing bags.

Select either Standard 60 Mesh Bags or 160 Fine Pressing Bags. Two bags are shipped with our Tincture Presses.

Features:

• White Polyester 60 threads per inch
• 120 Micron Thread Diameter
• 210 Mesh Thickness
• 303 Micron Mesh Opening

Fine 160 Mesh Bags

Features:

• White Polyester 160 threads per inch
• 63 Micron Thread Diameter
• 105 Micron Mesh Thickness
• 93 Micron Mesh Opening
•

Priced F.O.B. Illinois factory. This size must be shipped by truck freight. We will obtain the lowest available shipping quote for a commercial location with either a loading dock or forklift access. The shipping calculator will show a zero F.O.B. Shipping Deposit, which does not indicate free shipping. Truck freight rates may range from $ 150 to $300+, depending on your location and delivery address.

Presses are manufactured in a small Amish factory and are extremely popular; therefore, they are kept in stock. Generally, the 20-Ton models are custom-made per order and may take 3-6 weeks to ship.
