Tool Battery Adapter Auxiliary 12-24V Power Supply

More Views

Tool Battery Adapter Auxiliary 12-24V Power Supply

$0.00

The USA made molded battery tool docking stations are designed to fit either Dewalt, Makita or Milwaukee 18-20 Volt battery packs. Save money on batteries by using these adaptable USA Amish made power stations to power 12-24 Volt DC electronics, equipment, and appliances. Great for outdoorsmen to use the same battery packs in tools, for GPS, phones, and other battery eating gadgets.

Priced a la carte, using the drop-down boxes. Select the battery pack type and the prices will incrementally add for each pack selected. To deselect click on “Please Select” again.

Read more below the drop-down boxes about available options >

Description

The 12V model comes standard with a cigarette lighter plug only.

24V model options, 2-flat trailer plug, 2.1 mm, 1.3 mm (straight/angled) connector.

12 Amp 12 volt unit, a 2-flat plug for 12-volt heavy amp draw equipment such as a sprayer.

The innovative Amish who live off-grid has developed a molded power tool battery pack docking station that will accept three types of the most popular power tool battery packs.

The actual output will be 13 volt and 24 volts, to use on 12-volt and 24-volt systems available in standard 5 Amp. A 12 Amp 12 volt unit with a 2-flat plug is also available for 12-volt heavy amp draw equipment such as a sprayer. (Recommend using only the 20 amp battery packs for 15 amp use and the 2-pole trailer plug). Mating 2-pole plug end can be found at most auto part stores if not already attached on the equipment) Make selections using the drop-down boxes. Priced as 5 amp unit, selection of the 15 amp unit will incrementally add to the base price.

All the mm, trailer and cigarette lighter connectors assume center post or red wire as positive for polarity, if you have a negative polarity for the center post please note in the comment box at check out. Your current power supply or equipment that use the mm plugs should have a diagram of a half circle and a center post with lines pointing to the center and outer circle with either + or -, you are looking to be sure the center post is +. See the pictured example of a transformer. (the last picture to the right)

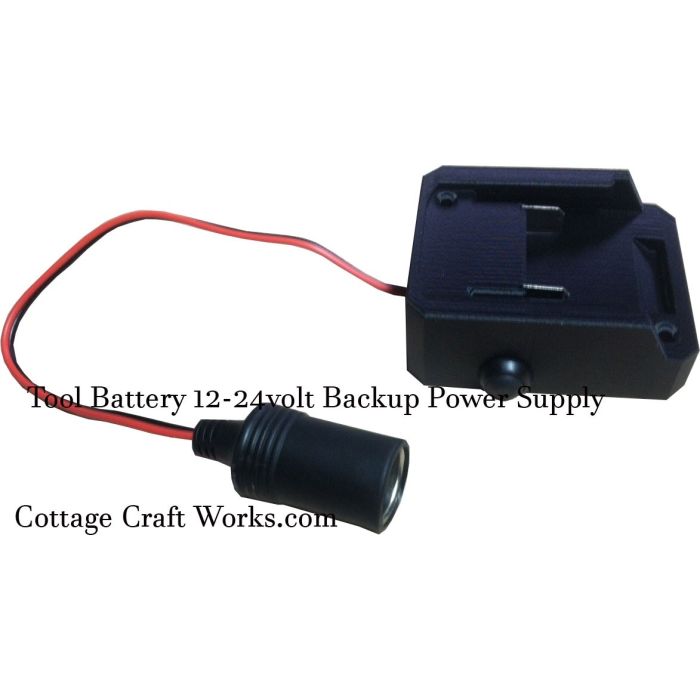

The molded battery pack docking station works just like it does on a power tool to firmly hold the battery in place in any position. It is more than just a black box with some wiring, it contains electronic circuitry that regulates the selected voltage and provides automatic shutdown or warning buzzer when the battery reaches low power limits. Convenient on and off switch is located on the unit.

These units do not recharge the batteries, you will still need a battery charging docking station that comes with the power tools and charges the battery the same way that you charge them. The Amish have multiple battery packs and use either solar charging stations or charge while running generators for short time uses. Battery Pack is also not included as pictured.

All products that we sell carry a 1-year warranty.
