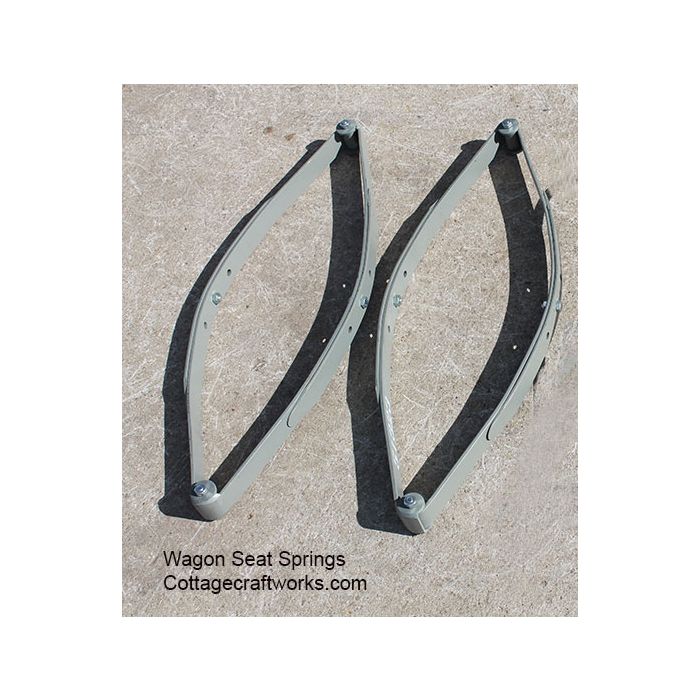

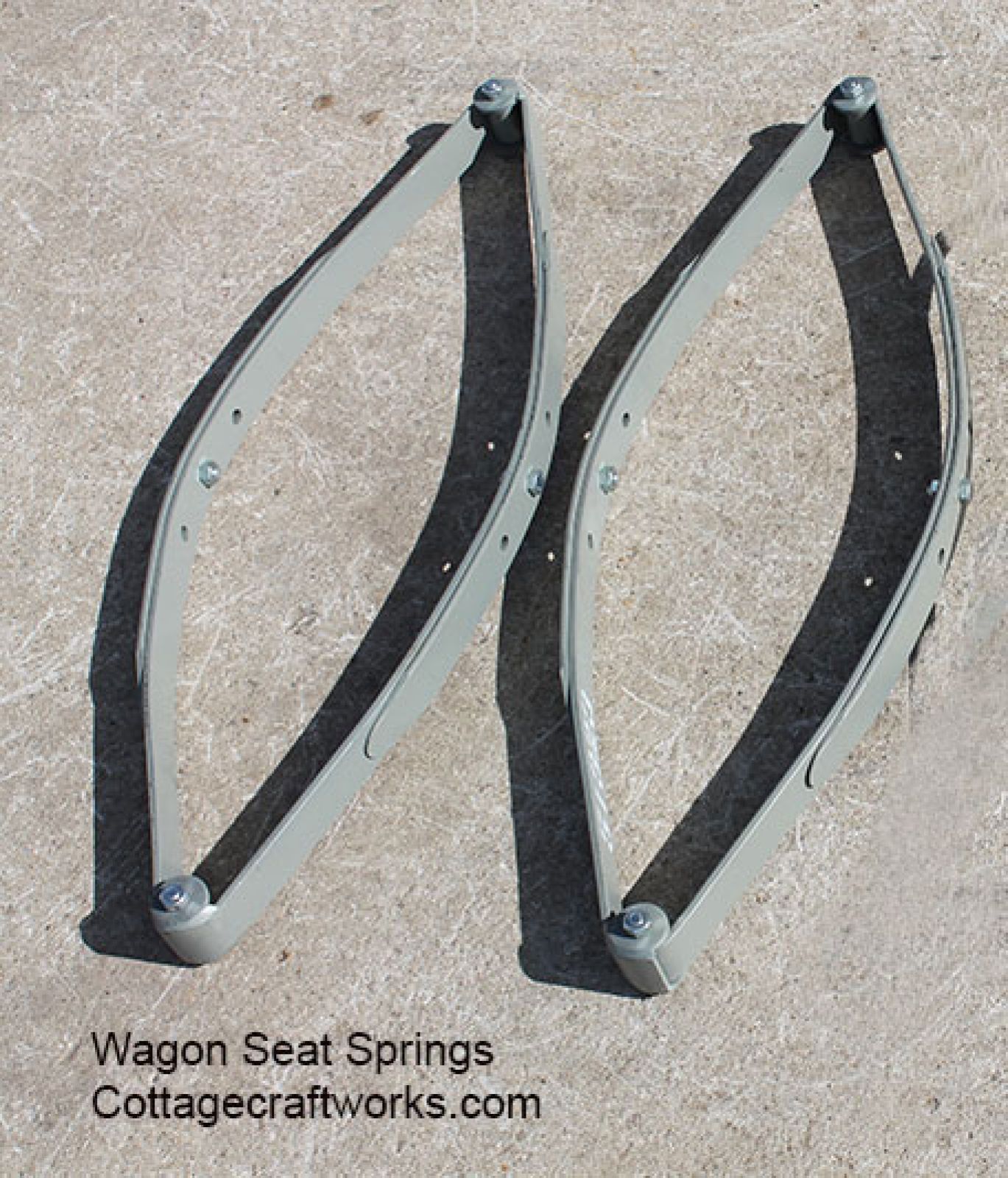

Select size at the top of the page. The 24" spring measures 8-1/2" high and the 18" spring measures 6-1/2" high. Springs are 1-1/4" wide rated for 150 lbs. per spring or 300 lbs. as a seat pair. We do have 1-1/2" springs only in the 24" size available rated for 180 lbs. each or 360. lbs as a seat pair, e-mail us for more information.
Bolts are 5/16" x 2" on the ends and in the centers. The springs will separate by removing these bolts.
Since springs were originally built in blacksmith shops and small factories trying to match an original is nearly impossible. Replacing the pair will be the best overall option for a uniform look and seat levelness.
Please allow 2-3 weeks for shipping.
We do offer the complete authentic wagon seat hardware kit to build a new seat or a complete wagon seat with the wood parts. Click the links below for more information.
We also carry full axle leaf springs, mounting hardware, blocks, fifth wheels, axles, and other hardware for carriages, buggies, and wagons. Click Here for more information.
